NEEWER Upgraded F100 7 Inch HD Camera Field Monitor Kit With Battery & Charger

Description

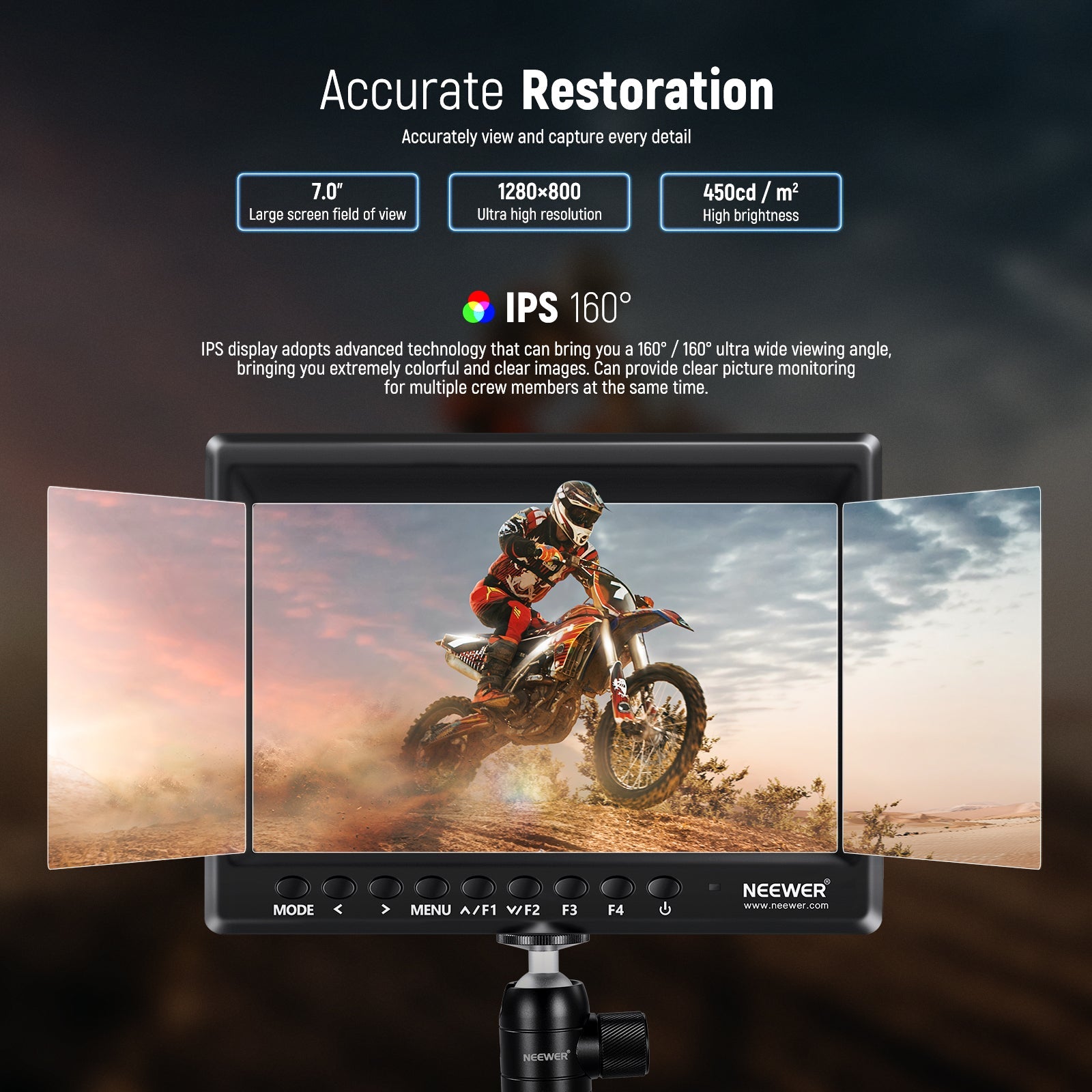

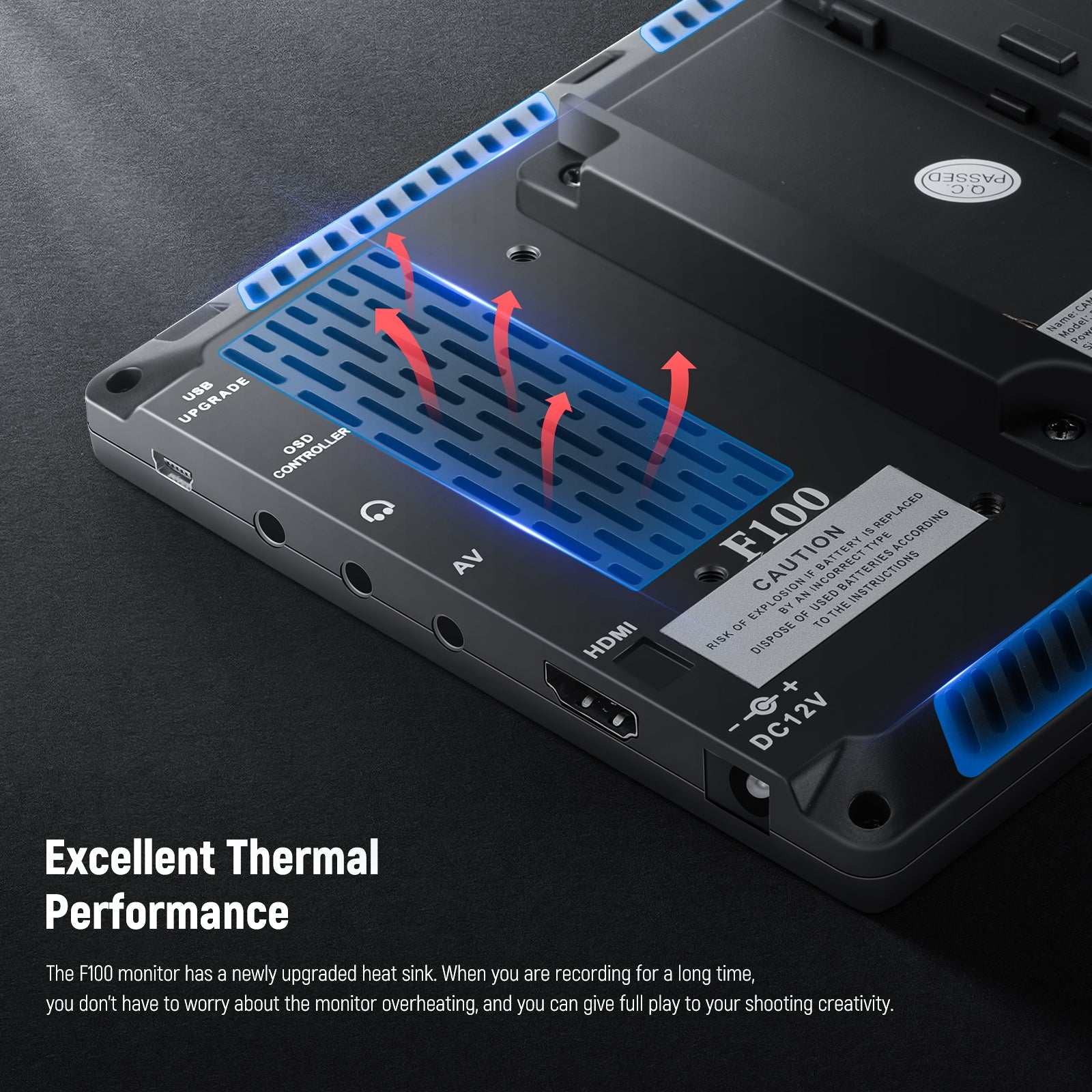

• Upgraded New Version F100 Camera Monitor- Featuring a 7 inch wide view angle IPS panel and 17mm ultra thin design with LED backlight, HD 1280 x 800 resolution, 450cd/m2 of brightness, a contrast ratio of 1200:1, and an aspect ratio of 16:10, this monitor is handy for video shooting. Upgraded heat sink based on MCU technology to improve heat dissipation performance and extend the working time of the monitor

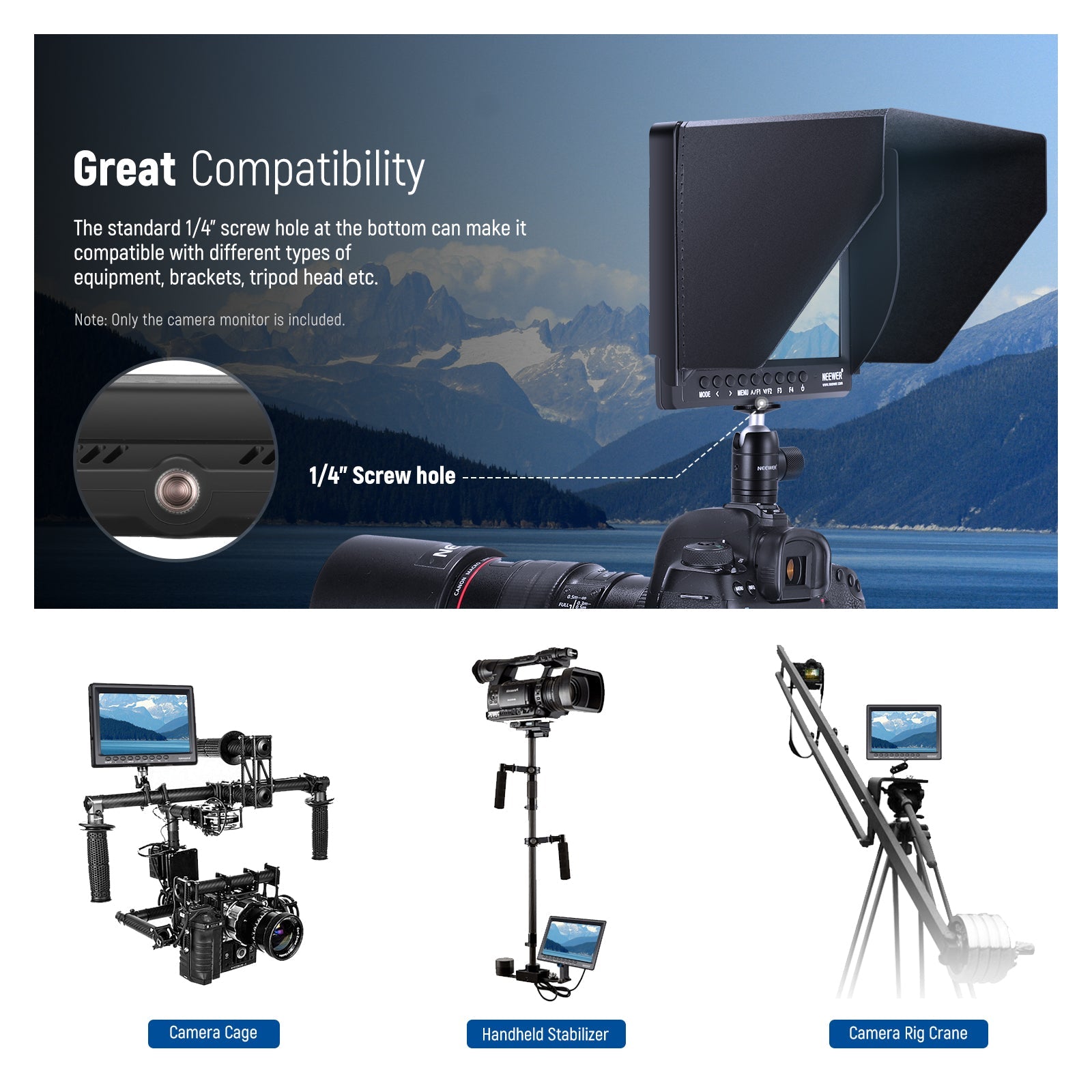

• Noise Elimination & Wide Compatibility- Press and hold the "<" button to reduce the volume to near zero, and also to eliminate noise in the video. It has passed EMC tests and can operate satisfactorily in an electromagnetic environment. Works with DSLR cameras, camcorders, handheld stabilizers, camera cranes, and more. The included sunshade blocks harsh sunlight and makes the display visible outdoors

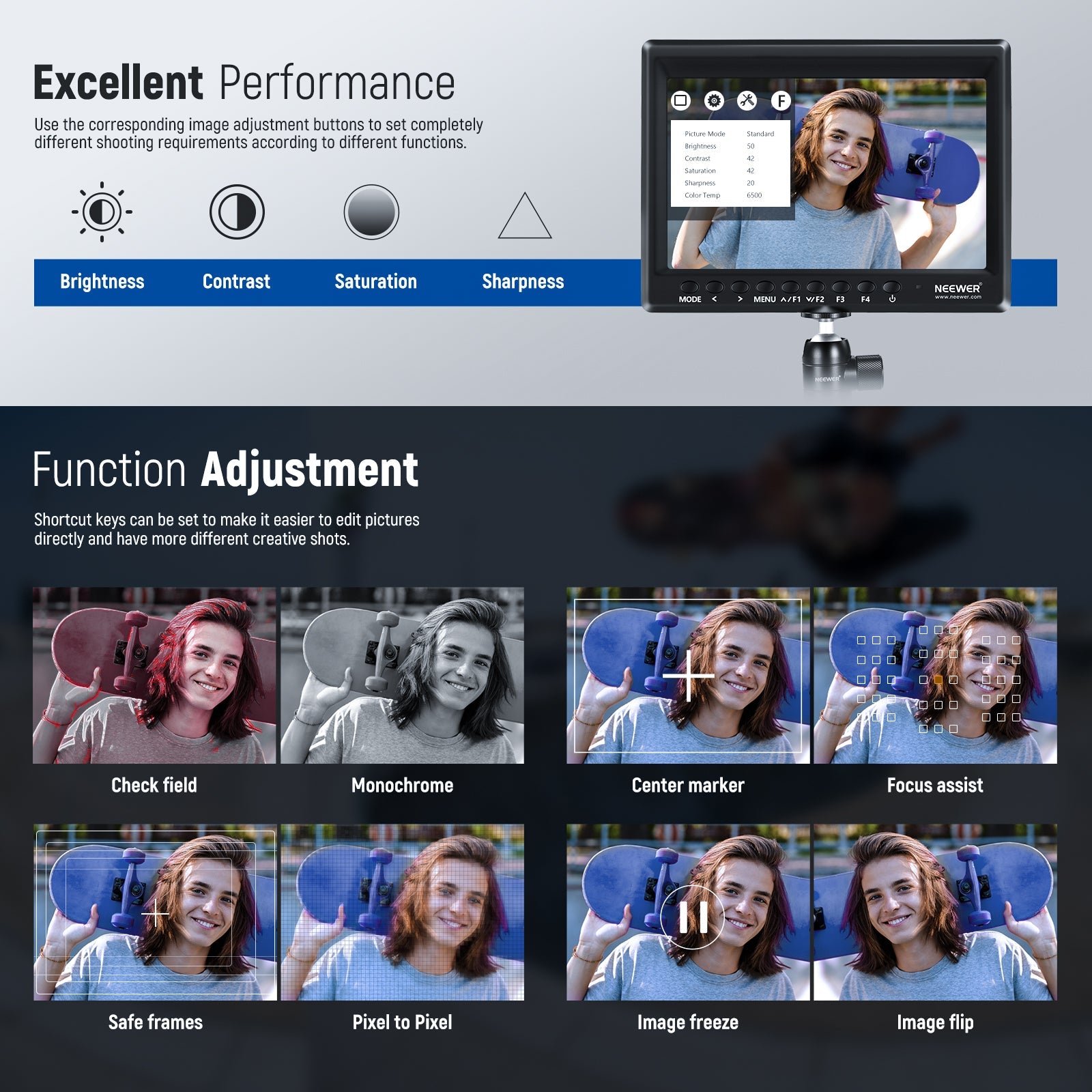

• Advanced Features- Includes monitoring tools such as Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Frames (80%, 86%, 90%, 93%, 96%, 2.35:1, off), Image Flip (H, V, V_H), Image Freeze, and Custom Color Temperature. Built-in VIDEO/AUDIO/HDMI inputs, suitable for several different signals. Picture zoom can be operated by zoom all, U/D zoom, and L/R zoom; Also comes with HDMI lock and battery lock

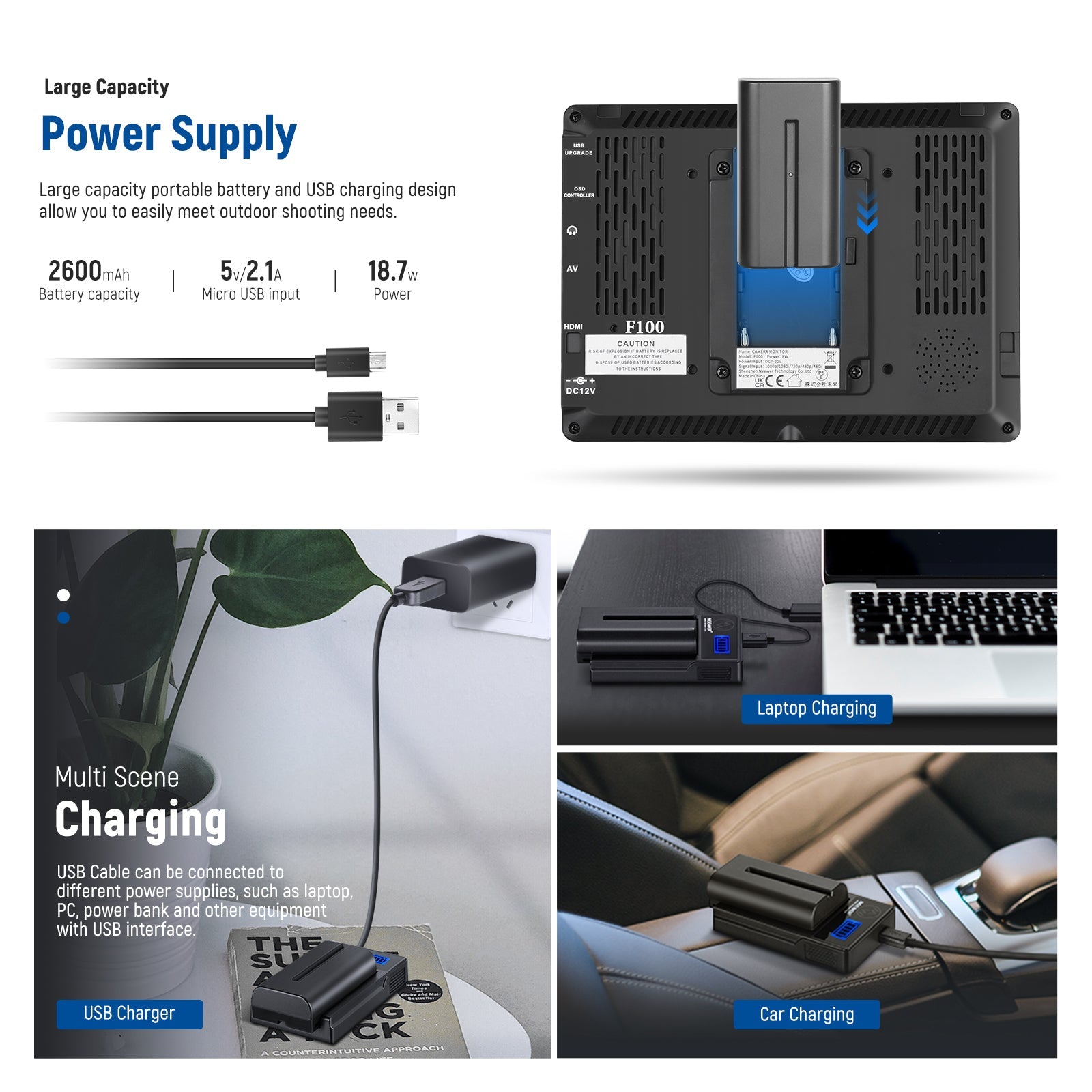

• Convenient for Outdoor Use- The kit includes an NP-F550 7.4V 2600mAh rechargeable lithium ion battery and a USB charger with short circuit protection and overcharge protection, so you never have to worry about running out of power and charging safety. The cold shoe adapter with a 1/4" screw and 360¡ã ball head can be connected to the camera's hot shoe, allowing easy adjustment to a suitable monitoring angle

Specifications

• Model: F100
• Panel Type: IPS LCD
• Resolution: 1280 x 800
• Backlight: LED
• Dot Pitch: 0.07875 x 0.07875mm
• Aspect Ratio: 16:10
• Brightness: 450nits
• Contrast Ratio: 1200:1
• Viewing Angle: 80¡ã/80¡ã (L/R), 80¡ã/80¡ã (U/D)
• Inputs: HDMI, AV

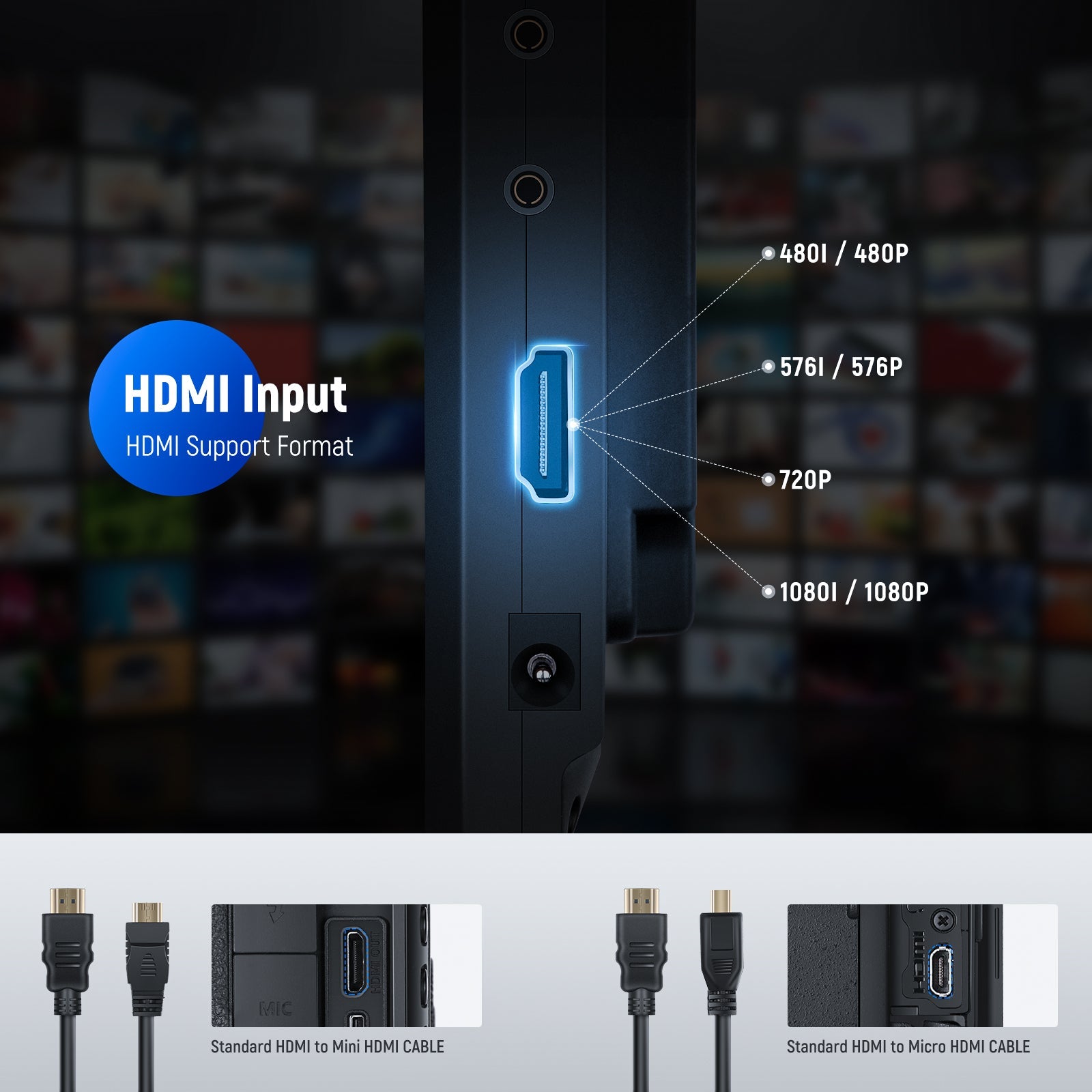

• HDMI Support Mode:
• 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 720p (60/59.94/50/30/29/25/24/23.98), 576i, 576p, 480i, and 480p
• Input Voltage: DC 7¨C24V
• Power Consumption: ¡Ü8W
• Battery Type: NP-F battery

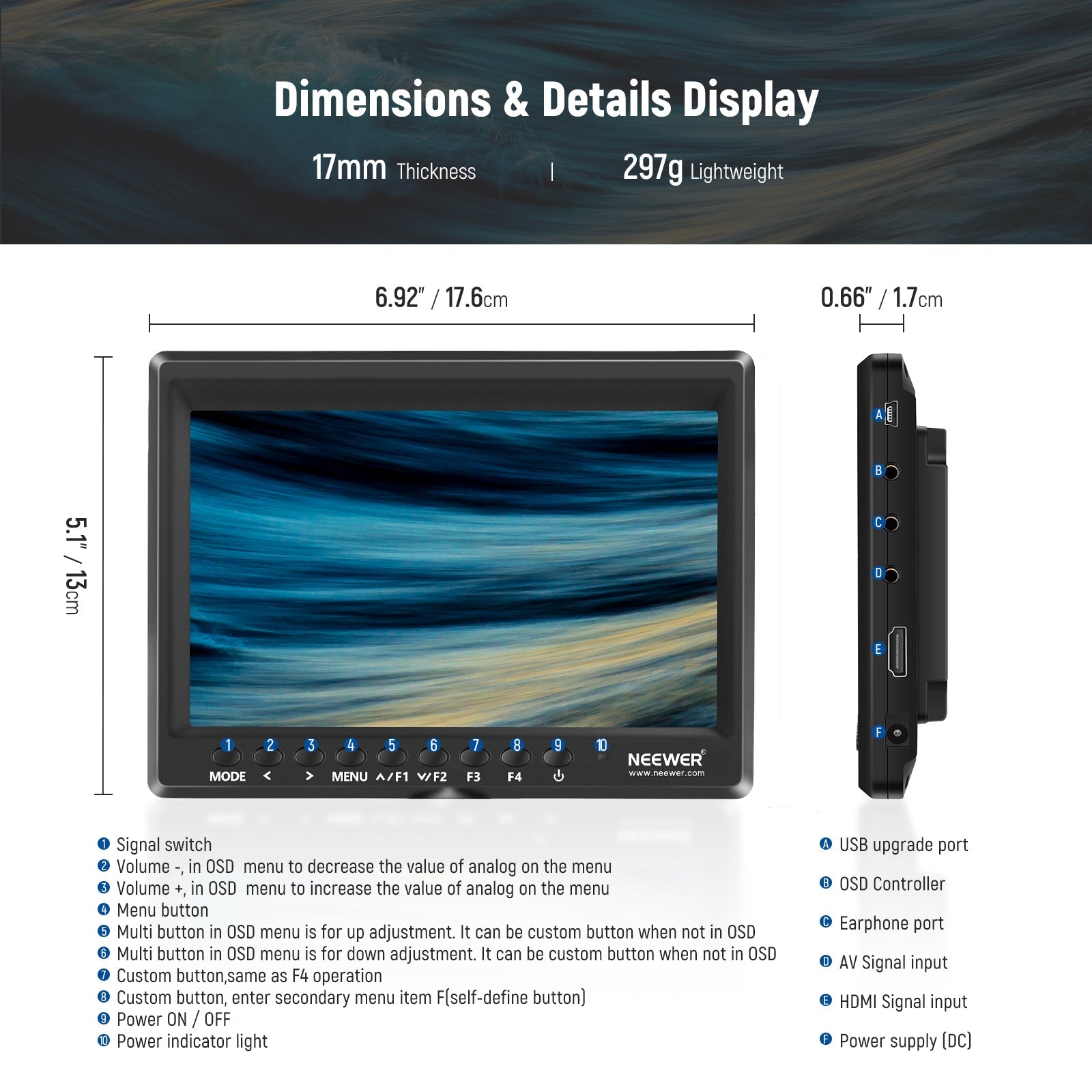

• Dimensions: 6.9¡± x 5.1¡± x 0.7¡± / 176 x 130 x 17mm
• Weight: 13oz / 370g

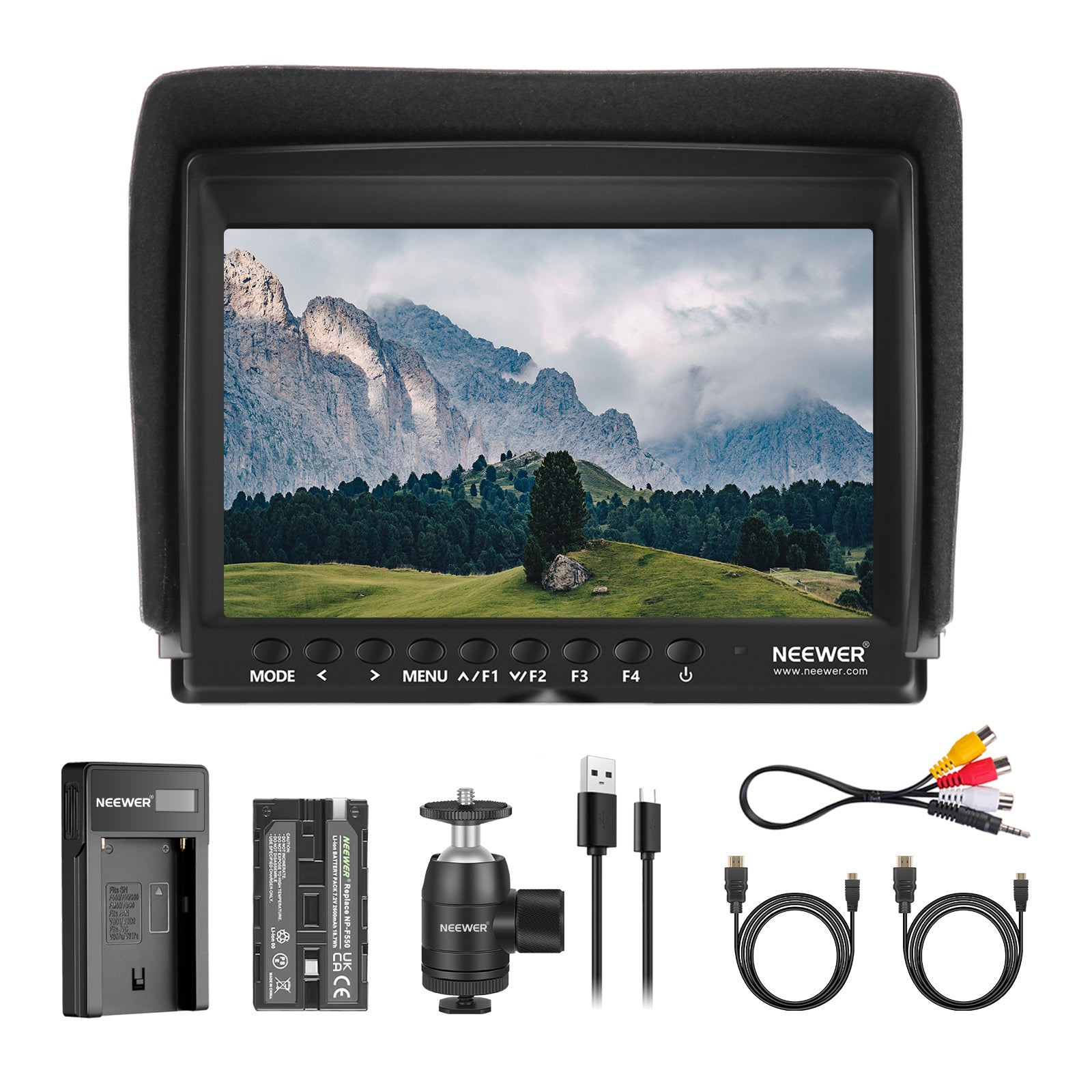

Package Contents

• 1 x F100 Monitor
• 1 x Sunshade
• 1 x Mini HDMI Cable
• 1 x Micro HDMI Cable
• 1 x AV Cable
• 1 x Mini Ball Head
• 1 x NP-F550 2600mAh Li-ion Battery
• 1 x NP-F550 USB Battery Charger
• 1 x User Manual
