NEEWER F700U OLED 7" Camera Touch Screen Monitor Kit
Description
Camera Monitor with 7" OLED Touch Screen- The 7 inch display shows 1920x1080 detail, 1200nits brightness, 100000:1 contrast, and a 160 degree viewing angle. Manual and auto backlight adjustment help keep the screen visible in bright scenes for precise frame by frame control
4K HDMI Input & Loop Out- HDMI input and loop output support smooth 4K video signal transmission, so the live image can be viewed on the F700U and sent to another display at the same time. A 3.5mm headphone jack supports real time audio monitoring on set
3G-SDI Input & Output- Connect your camera via SDI cable (not included) for lossless professional video transmission, supporting multiple HD formats up to 1920×1080. Making this camera field monitor a useful video equipment for professional photography and videography
Comprehensive Monitoring Tools- Peaking focus, false color, zebra, histogram, waveform, vectorscope, HDR, monochrome display, and audio levels for precise exposure and focus. Includes 15 built in 3D LUTs and supports up to 64 custom LUTs via SD card (not included) and firmware upgrade
Various Power Options- Powered by NP-F series batteries (2 x 4400mAh NP-F750 batteries included), DC 12V adapter (not included), or via USB C. Supports 5V/3A or higher fast charging. Note: Charge the batteries fully before first use to maximize their lifespan
Specifications
Model: F700U
Display: OLED
Resolution: 1920 × 1080 pixels
Pixel Pitch: 0.0804 (H) × 0.0804 (W) mm
Aspect Ratio: 16 : 9
Brightness: 1200nits ±10%
Contrast Ratio: 100,000 : 1
Color Depth: 10bit
Viewing Angle: >160° (H) / 160° (V)
Input: HDMI, SDI
Output: HDMI, SDI, 3.5mm headphone output
5.5mm DC Input Port: DC 7–24V (Dummy battery output is not supported at low input voltage.)
2.5mm DC Output Port: Actual output DC 8.4V
USB C Input Port: Supports powering the device with a 5V/3A or higher fast charger or a PD portable charger.
Power Consumption: 10W (without DC 8.4V output)
Dimensions: 7.1"x4.2"x1.1"/ 180x107x29mm
Operating Temperature: 20°C to 55°C
Storage Temperature: 30°C to 65°C

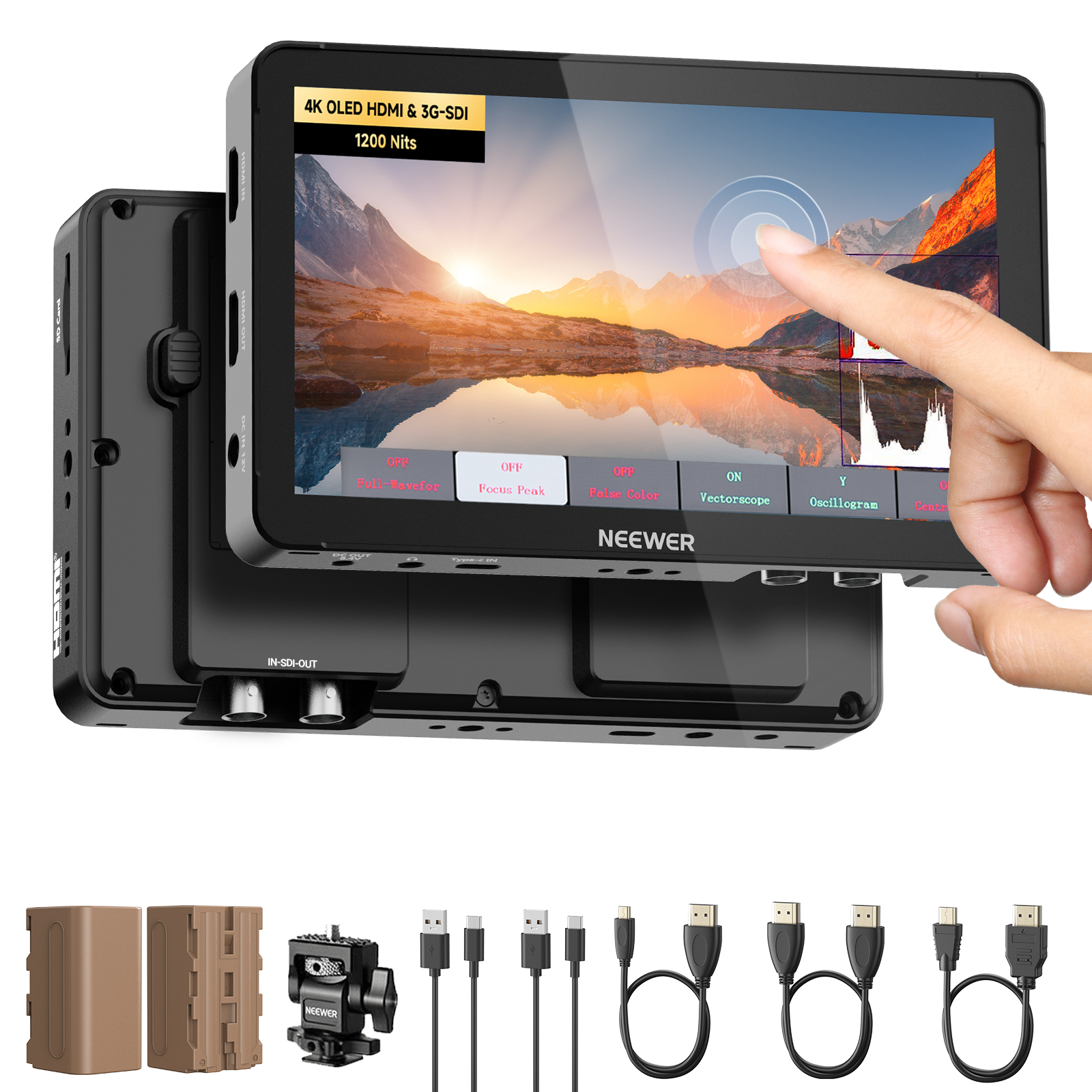

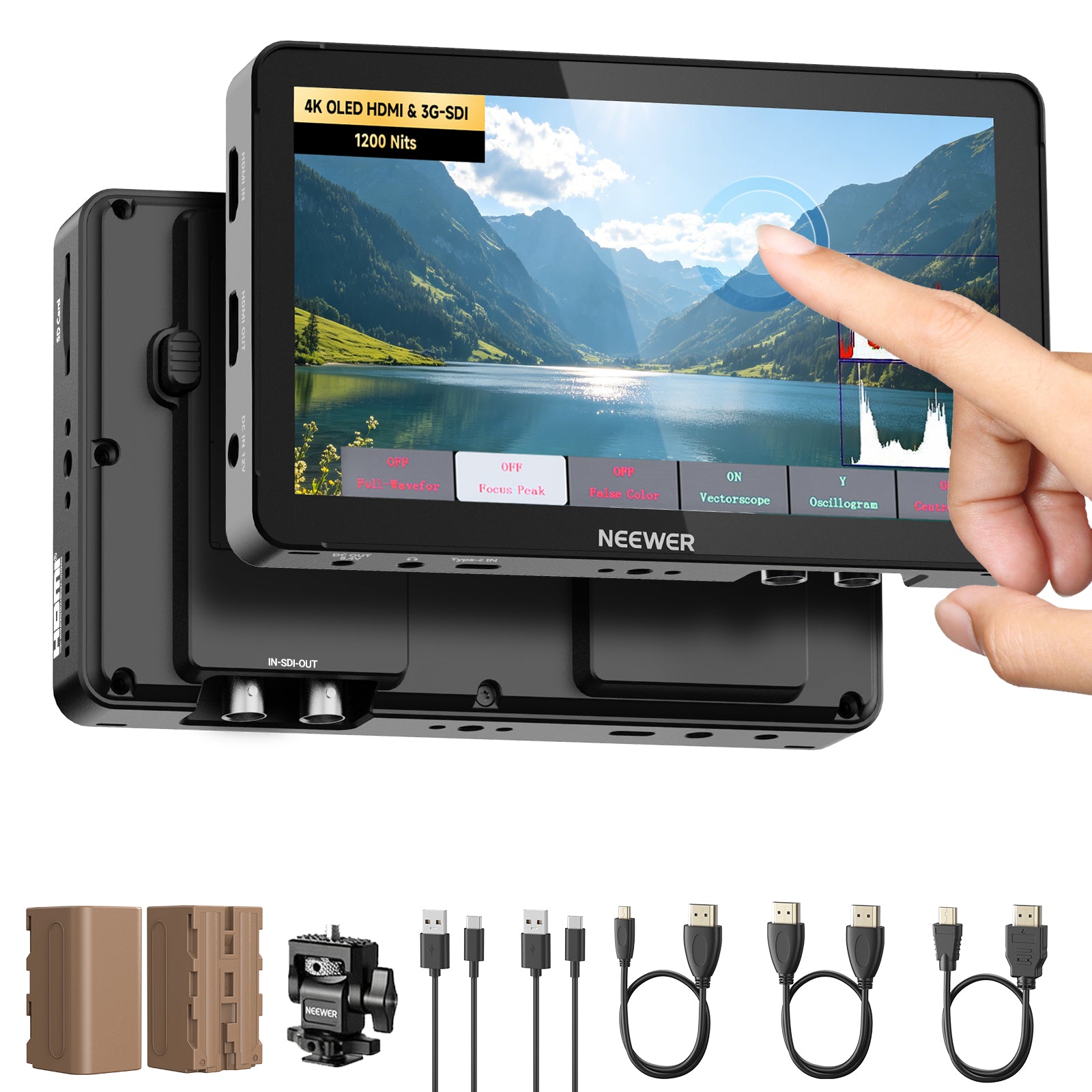

Package Contents
1 x Monitor
2 x 4400mAh NP-F750 Batteries
1 x Adapter Mount
1 x USB A to Type C Cable
1 x HDMI to Mini HDMI Cable
1 x HDMI to Micro HDMI Cable
1 x HDMI to HDMI Cable
Q: What's the difference between an OLED and an LCD camera monitor?
A: OLED displays use self-emitting pixels to produce deeper blacks, higher contrast, and more vivid images than traditional LCD panels. The NEEWER F700U features a 7-inch OLED touchscreen with a 100,000:1 contrast ratio and 10-bit color depth, providing detailed image previews for monitoring focus, exposure, and color during production.
Q: Is the NEEWER F700U a good monitor for outdoor shooting?
A: Yes. The NEEWER F700U features a 1200-nit OLED display with automatic and manual brightness adjustment, helping maintain clear visibility in bright outdoor environments. Its built-in ambient light sensor automatically adjusts screen brightness from 1–100 based on surrounding light conditions.
Q: Can I use the NEEWER F700U to preview Log footage and custom color looks?
A: Yes. The F700U supports 3D LUT monitoring, with 15 built-in LUTs and storage for up to 64 custom LUTs imported via an SD card (not included). You can preview Log-to-Rec.709 conversions and custom color looks on the monitor without changing the original footage recorded by your camera.
Q: What monitoring tools does the NEEWER F700U offer?
A: The F700U provides professional monitoring tools including focus peaking, false color, zebra, histogram, waveform, vectorscope, HDR, monochrome display, and audio levels. These tools help filmmakers check focus, evaluate exposure, and monitor image signals during video production.g.
Q: What makes the NEEWER F700U different from the F700?
A: The F700U features a 7-inch OLED touchscreen with a 100,000:1 contrast ratio and 10-bit color depth, while the F700 uses an IPS LCD display. The F700U also supports 3G-SDI input and output for professional video connectivity. The F700 offers higher peak brightness at 2000 nits, compared with 1200 nits on the F700U.
Q: Can the NEEWER F700U zoom in for focus checking?
A: Yes. The two-finger touch zoom function allows you to magnify the live image on the touchscreen, making it easier to inspect fine details and check critical focus while filming.
Q: Does the NEEWER F700U support 4K video input?
A: Yes. The F700U supports 4K HDMI input and loop output, allowing you to monitor incoming video signals and send them to another compatible display simultaneously. Please note that the monitor's native display resolution is 1920 × 1080 (Full HD), not 4K.
Q: Can the NEEWER F700U connect to professional cameras via SDI?
A: Yes. The F700U features 3G-SDI input and output for professional video signal connectivity, supporting multiple HD video formats up to 1920 × 1080. It can connect to compatible professional cameras and video production equipment using an SDI cable (not included).
Q: What power options does the NEEWER F700U support, and are batteries included?
A: Yes. The F700U comes with two 4400mAh NP-F750 batteries. It also supports NP-F series batteries, DC 7–24V input, and USB-C power input via a 5V/3A or higher charger or compatible PD power bank, offering flexible power options for studio and outdoor shooting.
