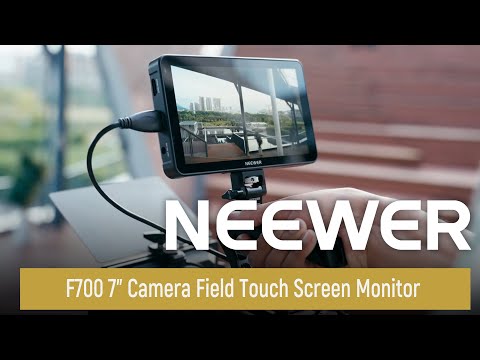

NEEWER F700 7" Camera Touch Screen Field Monitor

Description

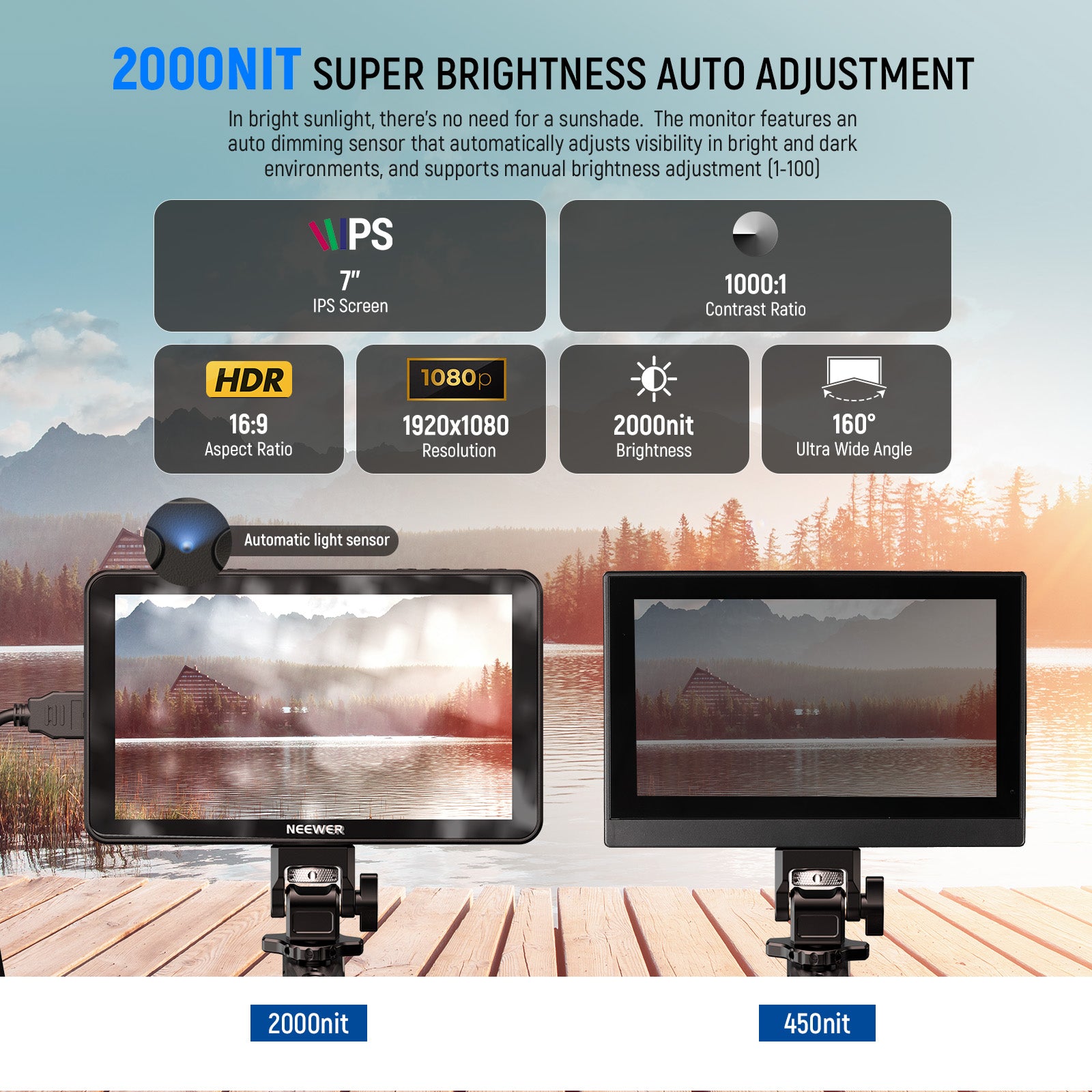

• 2000nit Touch Screen & Auto Backlight Control- The field monitor boasts up to 2000nit brightness on a 7 inch IPS touch screen (manual mode switchable), with a 1920x1080 pixel resolution, 1000:1 contrast ratio, 16:9 aspect ratio, and a 160° ultra wide viewing. With the competent ambient light sensor, the monitor automatically adds brightness (1-100) under bright sunlight, ensuring clear visibility without a sun hood, and dims the screen in darkness for eye comfort

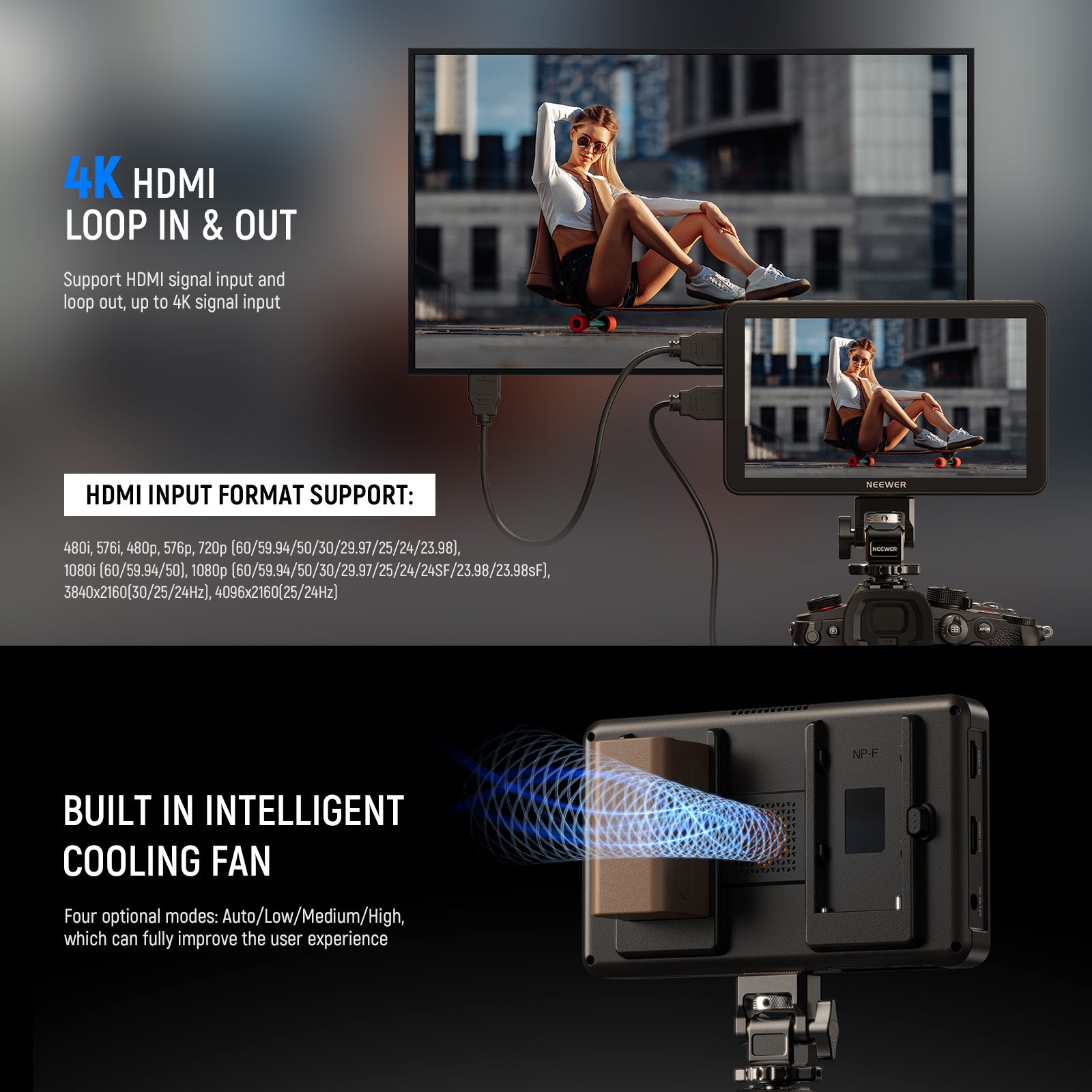

• Improved UI Design & 4K Loop In & Out- With a fresh design with improved UI, the camera monitor supports 4K HDMI loop input and output functionality, accommodating 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (24/25Hz). Also supports simultaneous audio monitoring via a 3.5mm headphone jack (headphones not included)

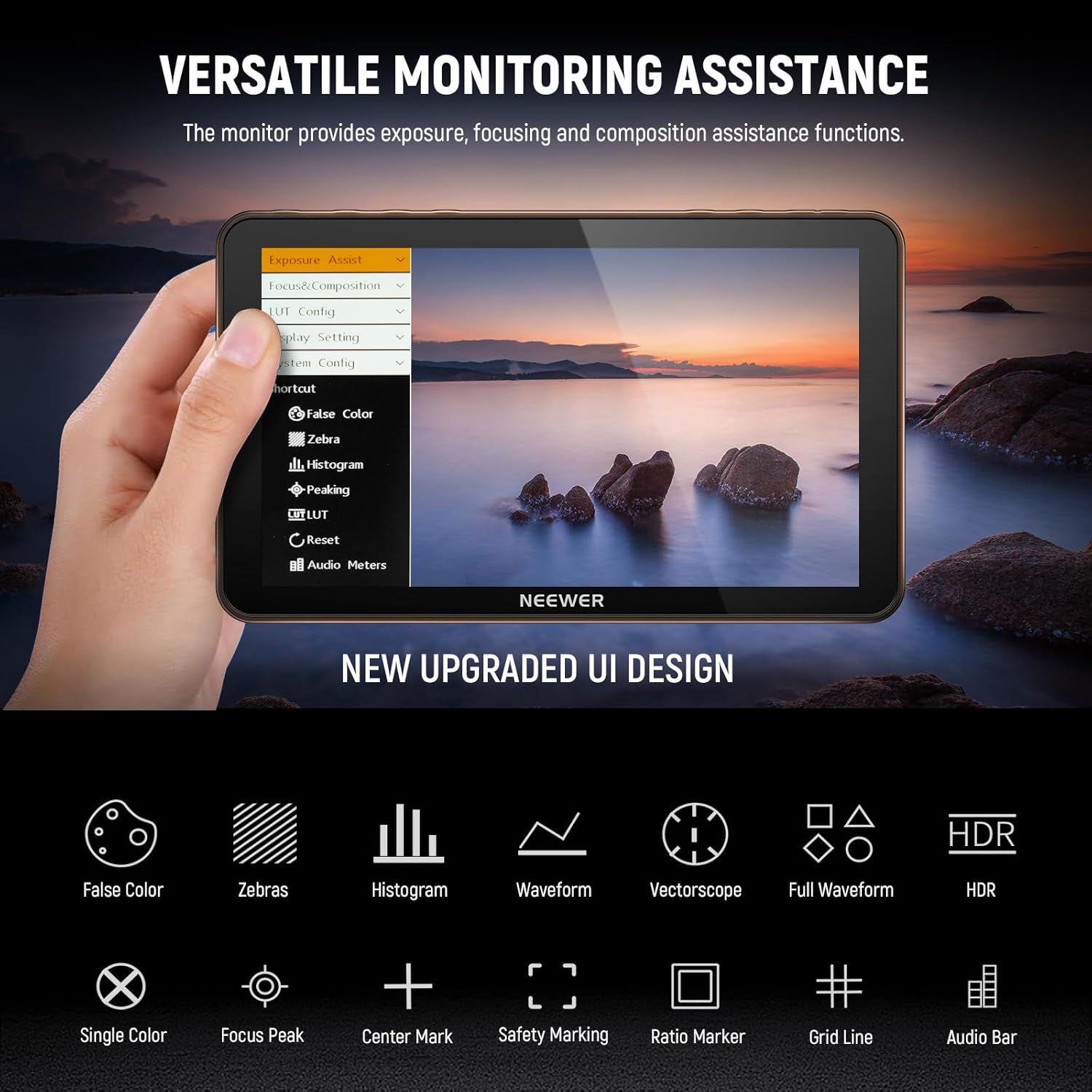

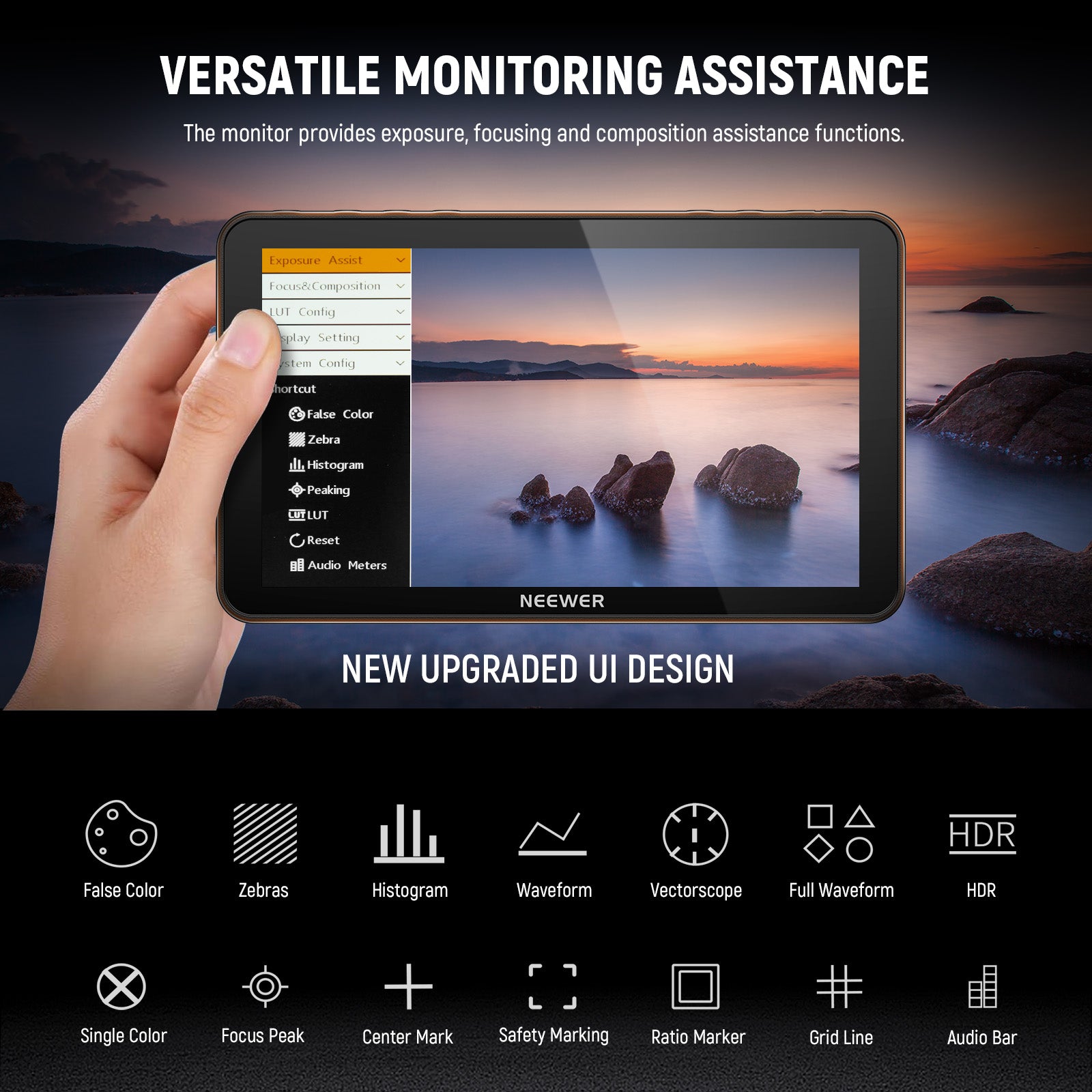

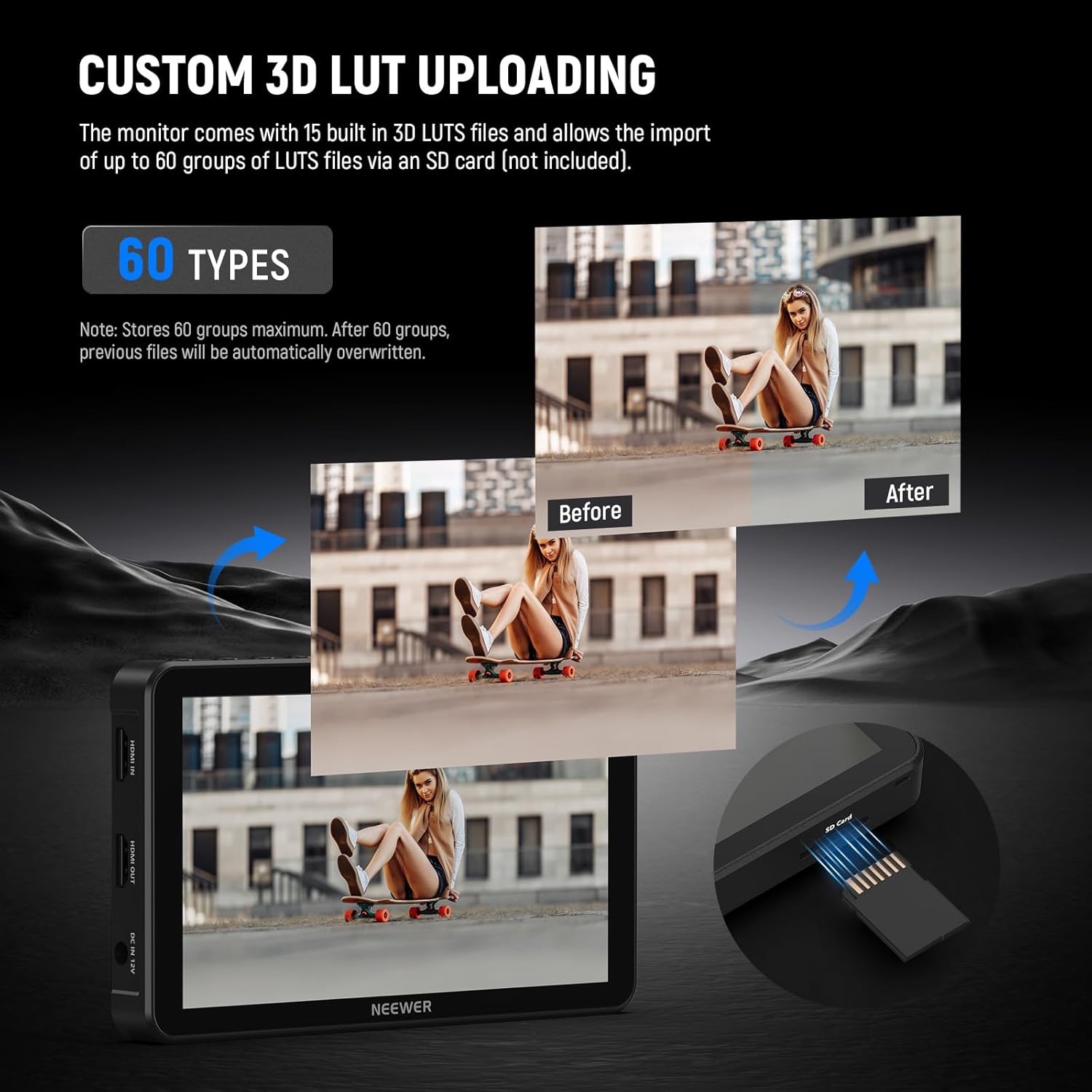

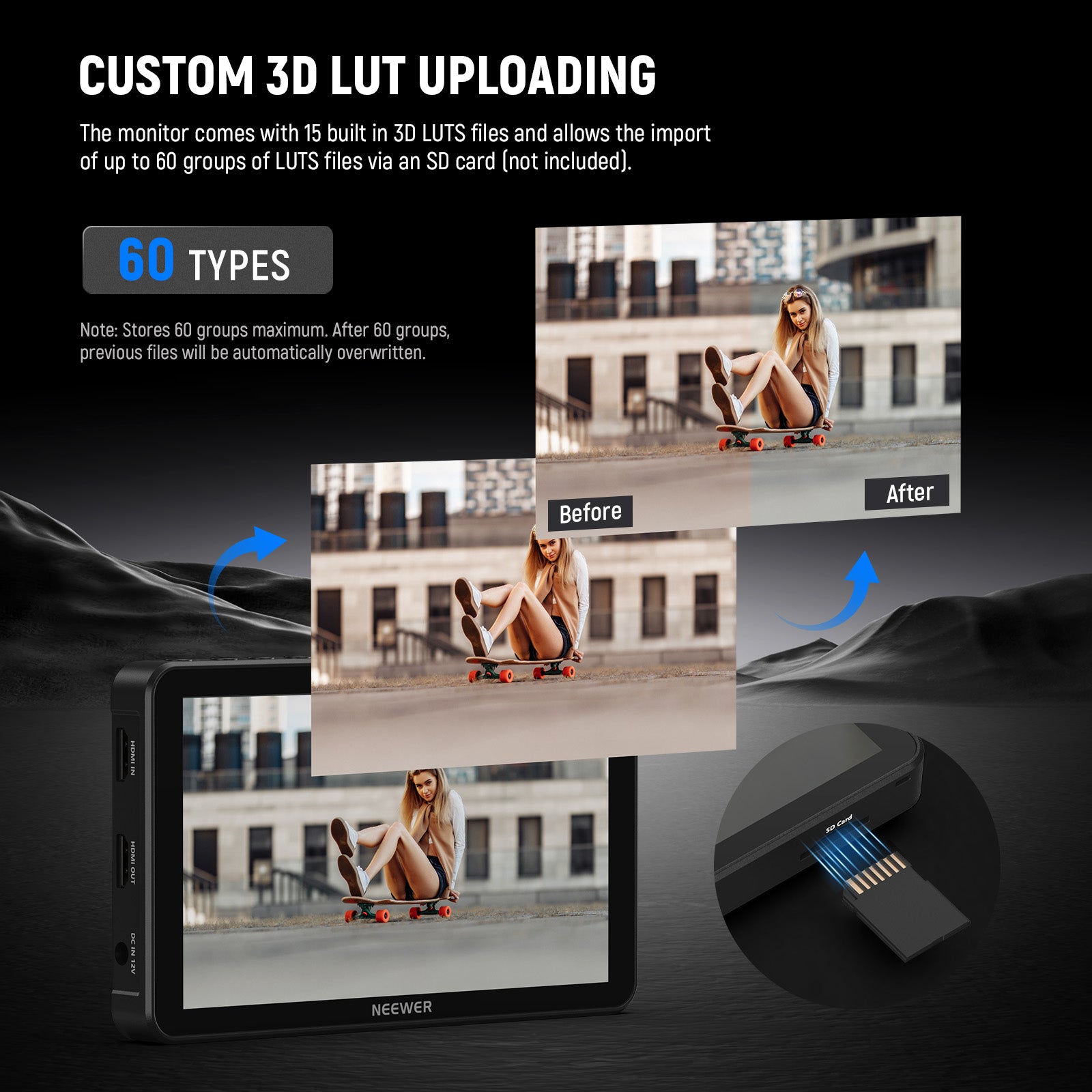

• Versatile Monitoring & Custom 3D LUT Upload- Adopting the professional Rec.709 HD color standard, the field monitor offers False Color, Zebras, Histogram, Oscillogram, Full Waveform, Vectorscope, HDR, Single Color, Peak Focus, Audio Bar, and more professional functions, with shortcut buttons (F1, F2, F3) on top for quick access. With 15 preloaded 3D LUTs, the monitor supports up to 60 custom 3D LUT file uploading, and even firmware upgrading via an SD card (not included)

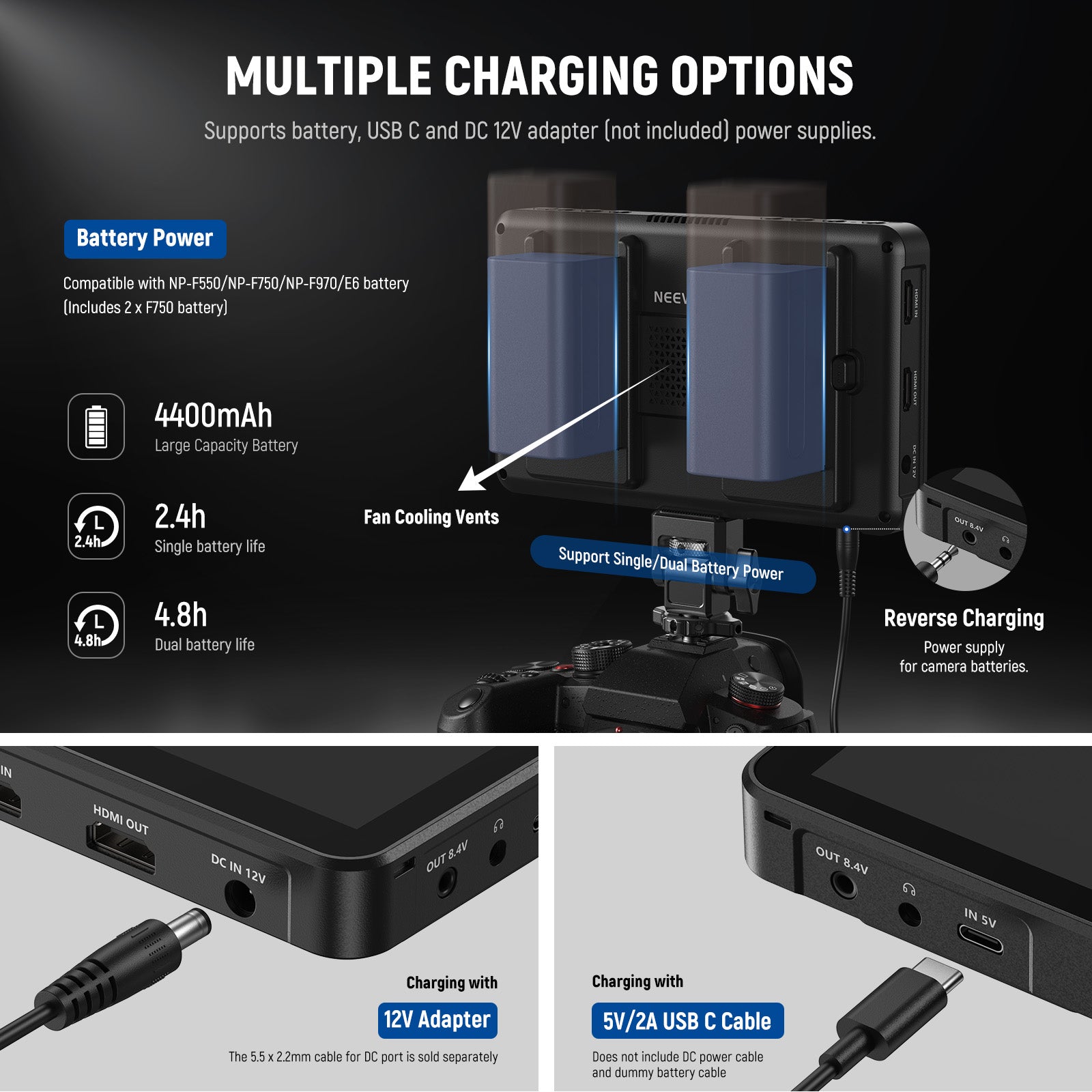

• Versatile Power Supply Options- The DSLR monitor supports NP-F battery compatibility (NP-F550/750/970), DC port (cable not included), and Type C charging. The two 4400mAh NP-F750 batteries included provide 2.4 hours of runtime each or 4.8 hours combined, and can be charged using 5V/3A or higher fast chargers or portable chargers (3A output) and the included USB to Type C cable. The monitor also works as a dummy battery for camera via a DC 8V/1.5A output for prolonged outdoor filming

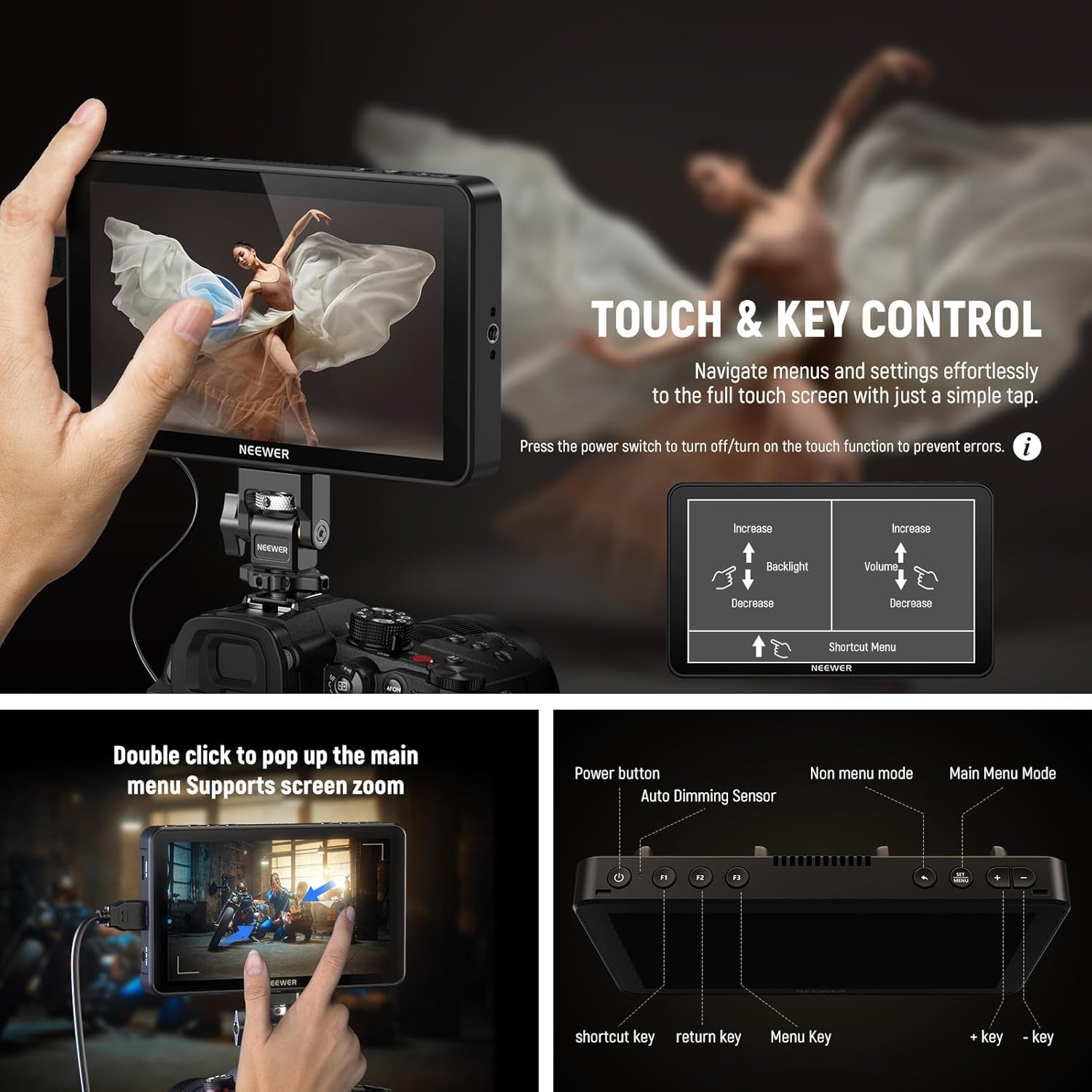

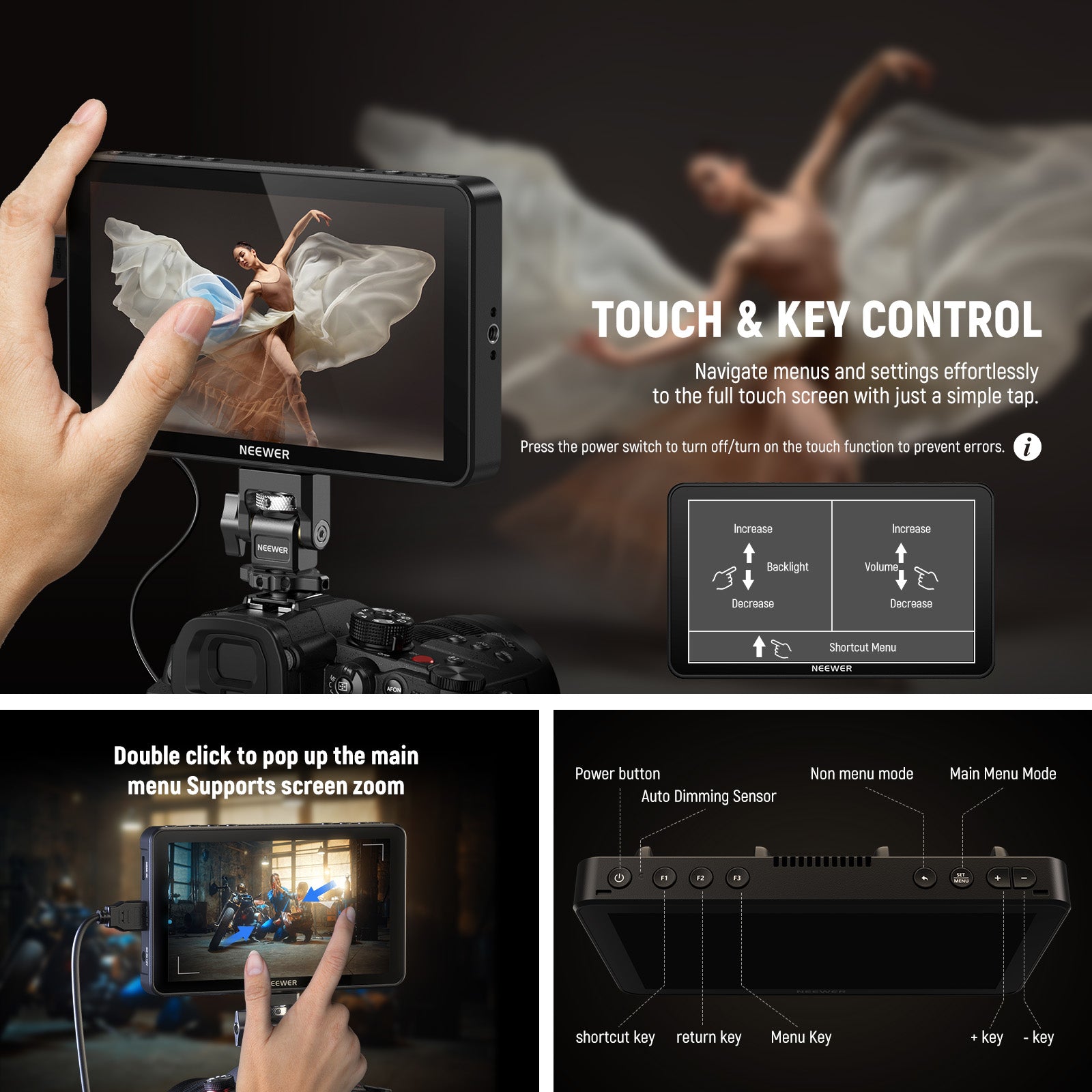

• 180° Adjustable & Enhanced Cooling- Equipped with 1/4" screw holes on the bottom and side, the DSLR monitor offers flexible mounting options and includes a cold shoe mount for 180° adjustment. Additionally, the built in cooling fans efficiently dissipate heat for extended use. Note: Long press the power switch to turn on/off, then short press the power switch to enable/disable the touch screen. Double click the screen to pop up the main menu Supports screen zoom

Specifications

• Model: F700
• Resolution: 1920x1080 pixels
• Dot Pitch: 0.0804(H)x0.0804(W)(mm)
• Aspect Ratio: 16:9
• Brightness: 2000nit ±10% (actual measured brightness)
• Contrast Ratio: 1000:1
• Viewing Angle: >160°H/160°V; 80°/80°(L/R) 80°/80°(U/D)
• Input: HDMI
• Output: HDMI, 3.5mm headphone jack
• Power Input/Output:
  5.5mm DC Input Interface: DC- 12-26V (cannot be used as a dummy battery when in low voltage output)
  2.5mm DC Output Interface: DC 8.4V (can connect a dummy battery power cord to the camera via the DC power output interface, significantly extending the camera's battery life)
• Type C Input Interface: Supports 5V/3A and higher fast chargers or portable chargers (3A output)
• HDMI Input Format Support: 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (25/24Hz)
• Total Power Consumption: ≤22W (without DC 8.4V output)
• Operating Temperature: -20°C-55°C
• Storage Temperature: -30°C-65°C

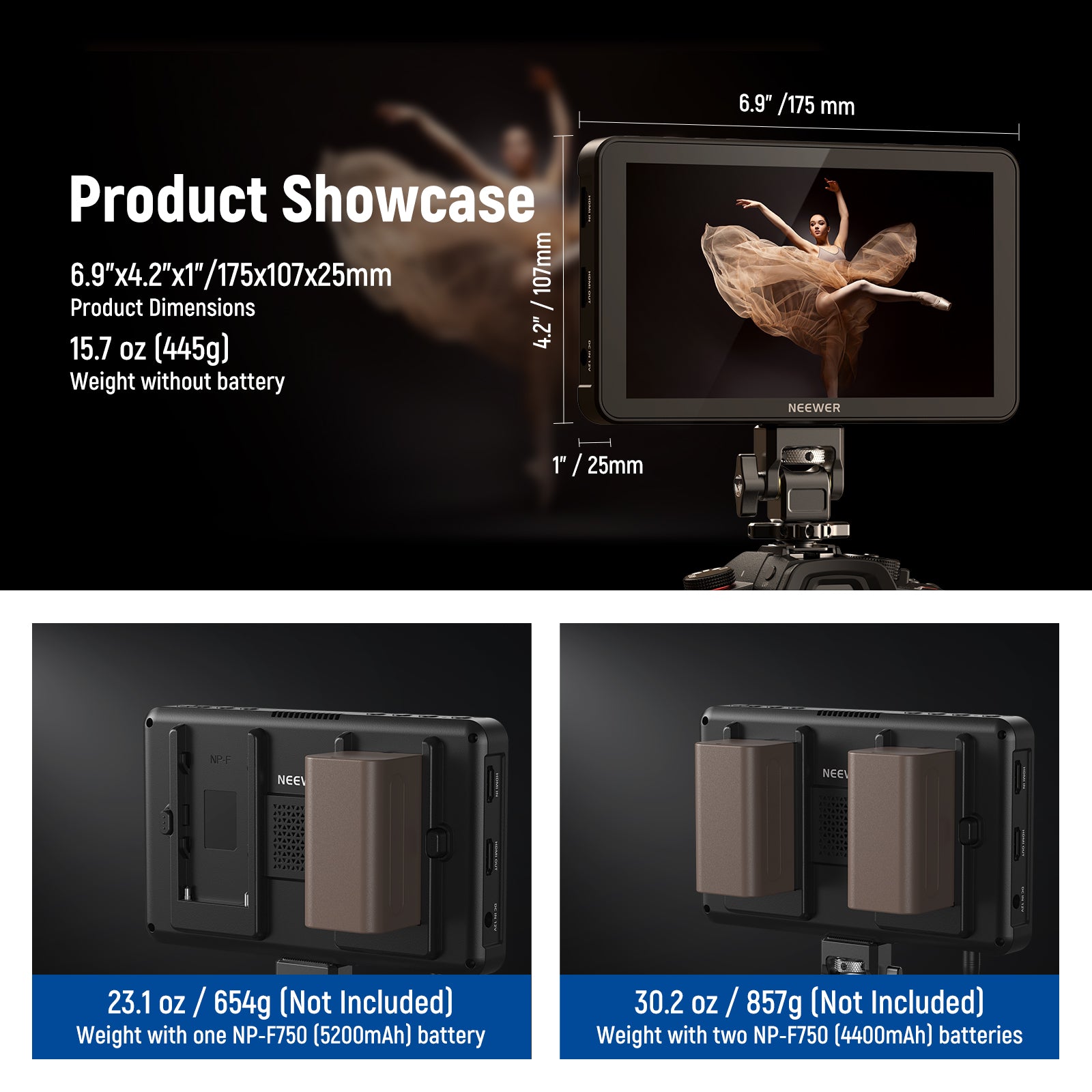

• Dimensions: 6.9"x4.2"x1"/175x107x25mm

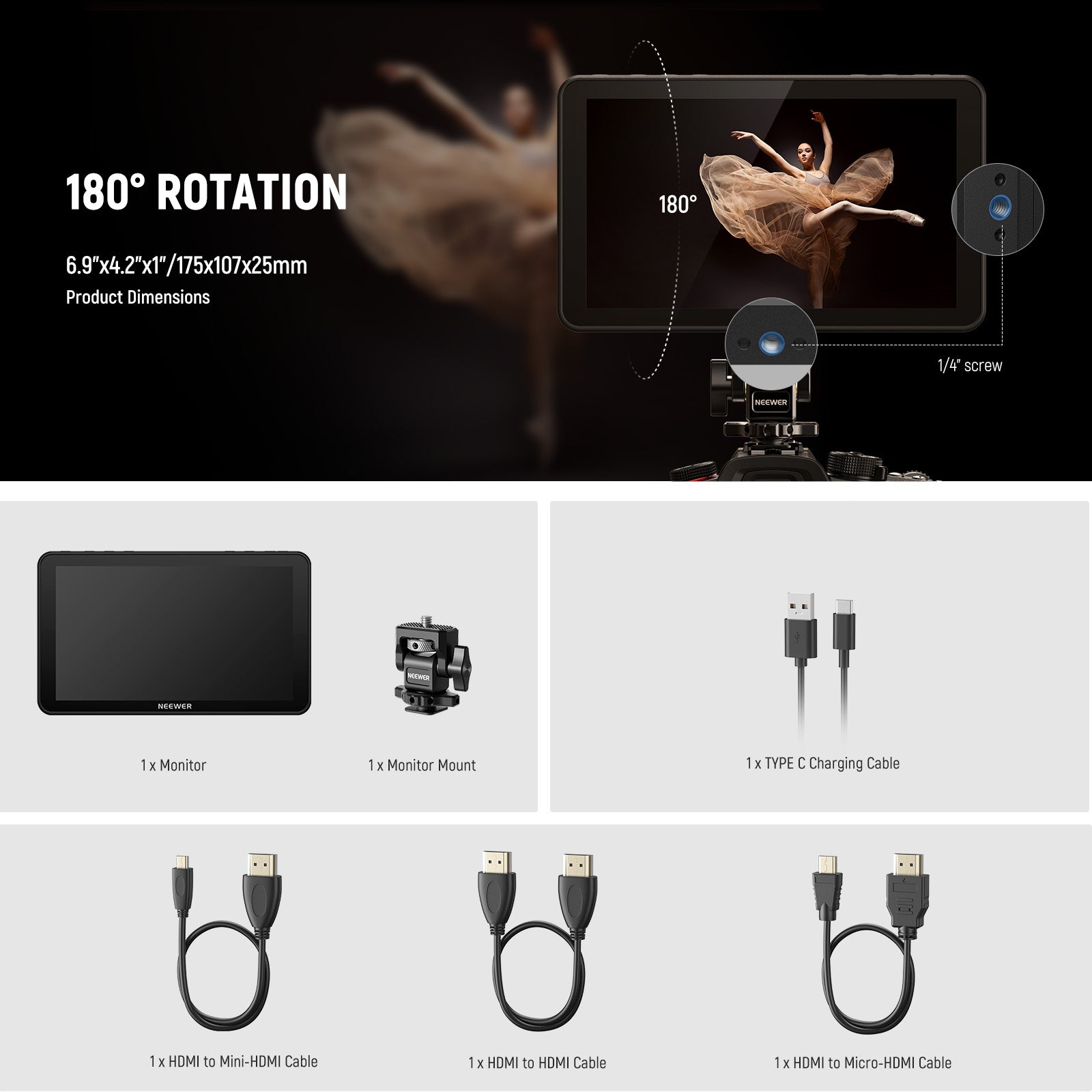

Package Contents

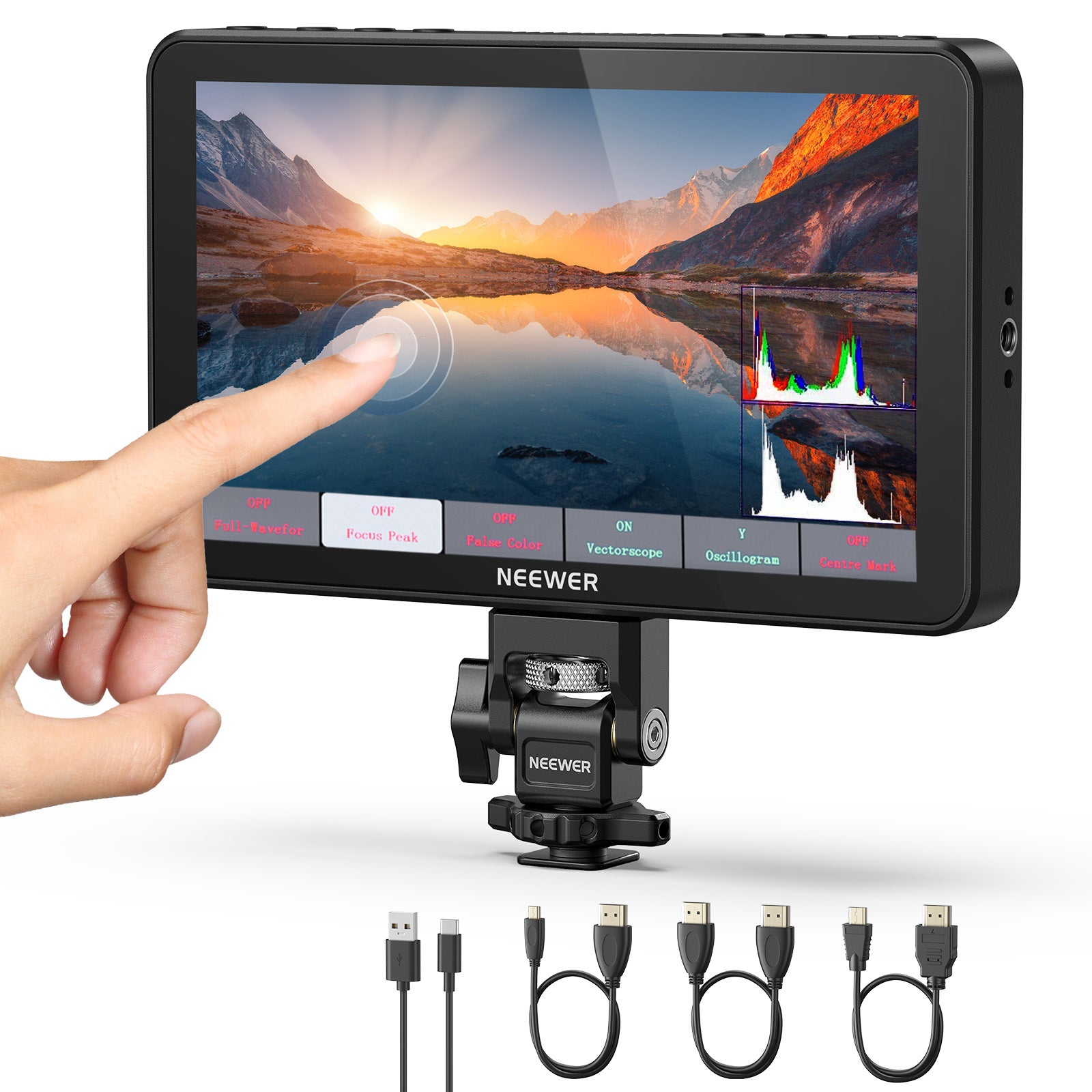

F700

• 1 x Monitor
• 1 x Monitor Mount
• 1 x USB to Type C Charging Cable
• 1 x HDMI to HDMI Cable
• 1 x HDMI to Micro HDMI Cable
• 1 x HDMI to Mini HDMI Cable

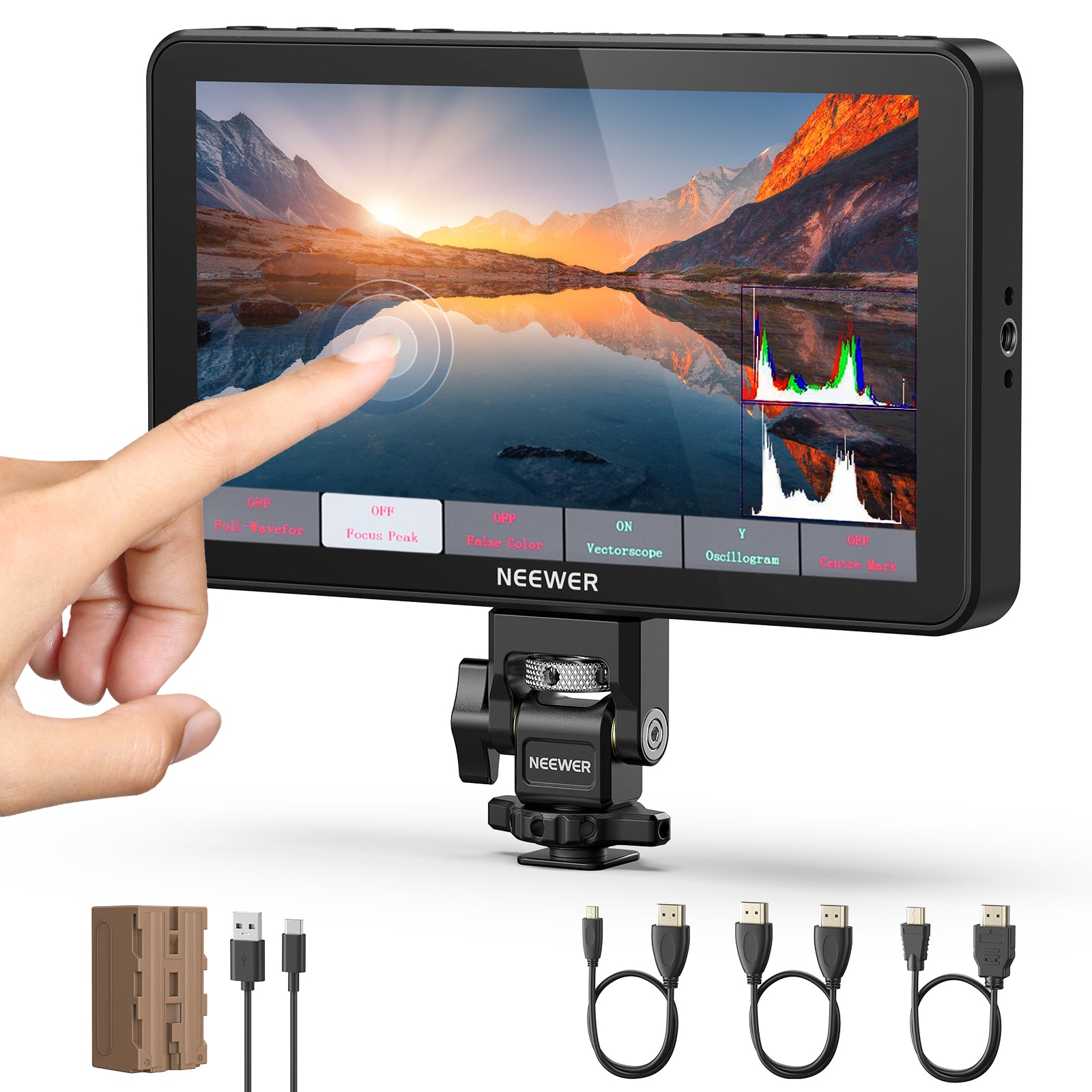

F700+1*NP-F750 Battery

• 1 x Monitor
• 1 x Monitor Mount
• 1 x 5200mAh NP-F750 Battery
• 1 x USB to Type C Charging Cable
• 1 x HDMI to HDMI Cable
• 1 x HDMI to Micro HDMI Cable
• 1 x HDMI to Mini HDMI Cable

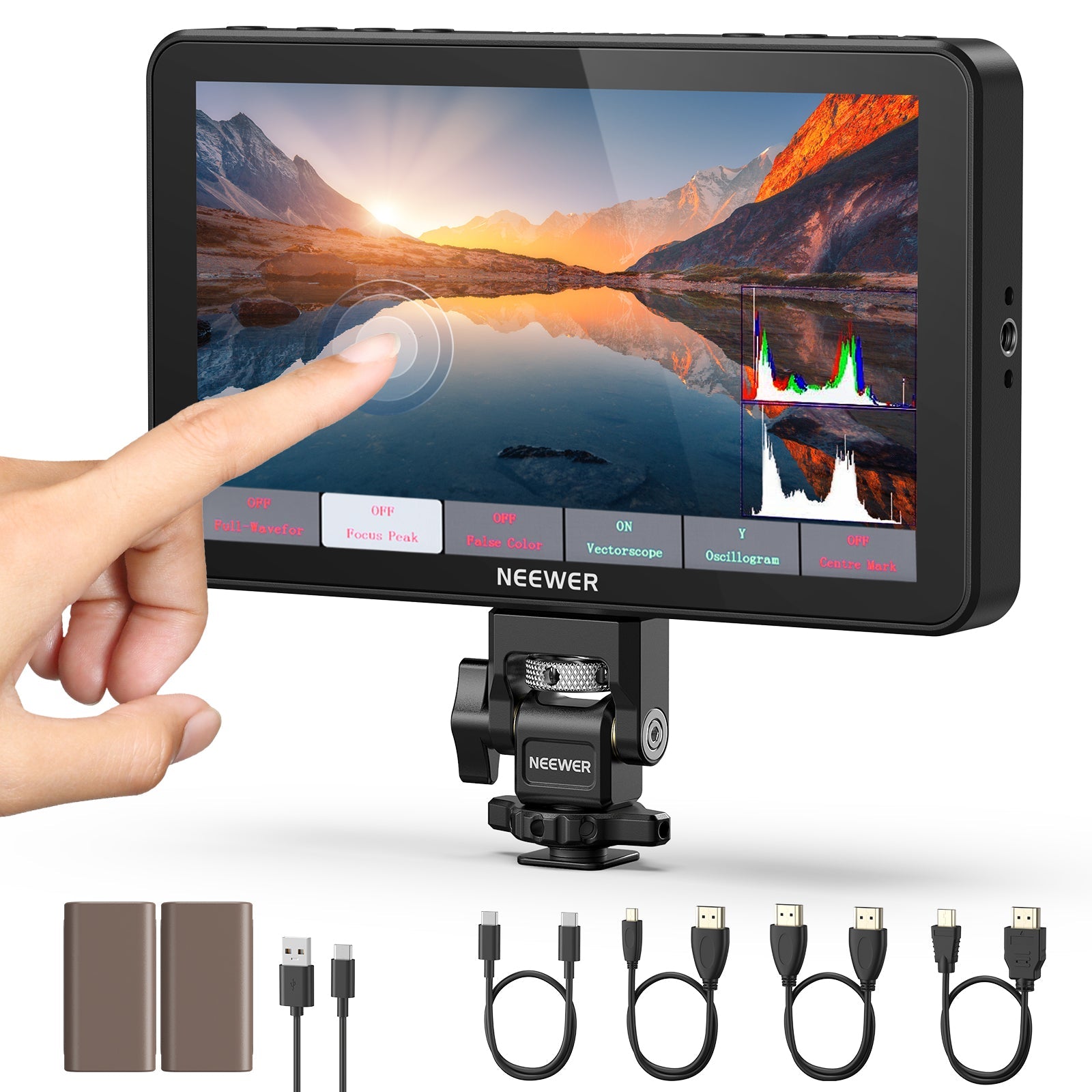

F700+ 2*NP-F750 Battery

• 1 x Monitor
• 1 x Monitor Mount
• 2 x 4400mAh NP-F750 Battery
• 2 x USB to Type C Charging Cable
• 1 x HDMI to HDMI Cable
• 1 x HDMI to Micro-HDMI Cable
• 1 x HDMI to Mini-HDMI Cable
