NEEWER F700 LED 7" Camera Touch Screen Monitor
NEEWER products purchased from the official website are covered by a 2-year warranty and 30-day hassle-free returns.
Shipping from UK warehouse, normally the transit time takes 2-5 working days after dispatch. Learn more at Shipping Policy.
Description
- 2000nit Touch Screen & Auto Backlight Control- The field monitor boasts up to 2000nit brightness on a 7 inch IPS touch screen (manual mode switchable), with a 1920x1080 pixel resolution, 1000:1 contrast ratio, 16:9 aspect ratio, and a 160° ultra wide viewing. With the competent ambient light sensor, the monitor automatically adds brightness (1-100) under bright sunlight, ensuring clear visibility without a sun hood, and dims the screen in darkness for eye comfort
- Improved UI Design & 4K Loop In & Out- With a fresh design with improved UI, the camera monitor supports 4K HDMI loop input and output functionality, accommodating 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (24/25Hz). Also supports simultaneous audio monitoring via a 3.5mm headphone jack (headphones not included)
- Versatile Monitoring & Custom 3D LUT Upload- Adopting the professional Rec.709 HD color standard, the field monitor offers False Color, Zebras, Histogram, Oscillogram, Full Waveform, Vectorscope, HDR, Single Color, Peak Focus, Audio Bar, and more professional functions, with shortcut buttons (F1, F2, F3) on top for quick access. With 15 preloaded 3D LUTs, the monitor supports up to 60 custom 3D LUT file uploading, and even firmware upgrading via an SD card (not included)

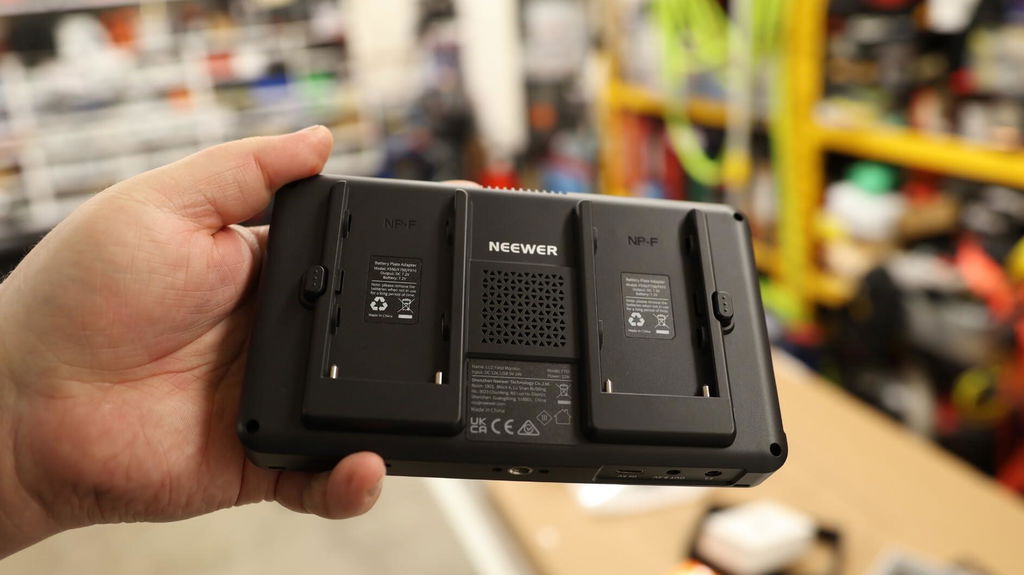

- Versatile Power Supply Options- The DSLR monitor supports NP-F battery compatibility (NP-F550/750/970), DC port (cable not included), and Type C charging. The two 4400mAh NP-F750 batteries included provide 2.4 hours of runtime each or 4.8 hours combined, and can be charged using 5V/3A or higher fast chargers or portable chargers (3A output) and the included USB to Type C cable. The monitor also works as a dummy battery for camera via a DC 8V/1.5A output for prolonged outdoor filming

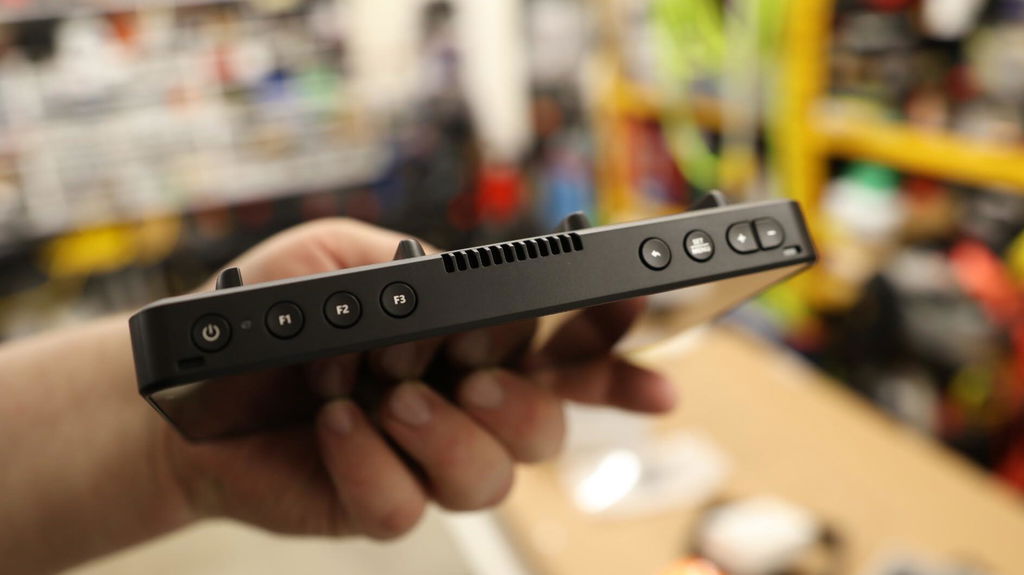

- 180° Adjustable & Enhanced Cooling- Equipped with 1/4" screw holes on the bottom and side, the DSLR monitor offers flexible mounting options and includes a cold shoe mount for 180° adjustment. Additionally, the built in cooling fans efficiently dissipate heat for extended use. Note: Long press the power switch to turn on/off, then short press the power switch to enable/disable the touch screen. Double click the screen to pop up the main menu Supports screen zoom
Specifications
- Model: F700
- Resolution: 1920x1080 pixels
- Dot Pitch: 0.0804(H)x0.0804(W)(mm)
- Aspect Ratio: 16:9
- Brightness: 2000nit ±10% (actual measured brightness)
- Contrast Ratio: 1000:1
- Viewing Angle: >160°H/160°V; 80°/80°(L/R) 80°/80°(U/D)

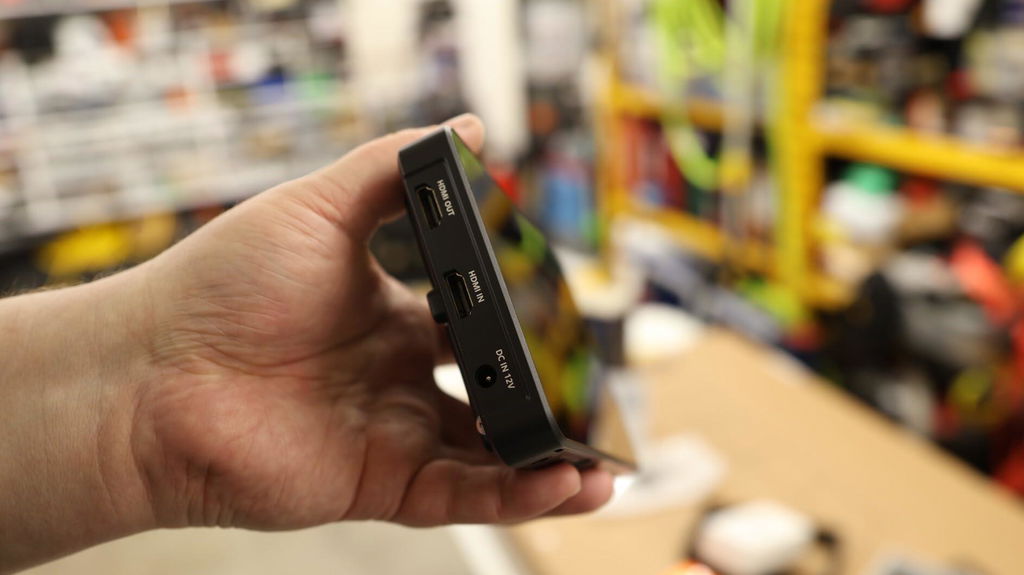

- Input: HDMI

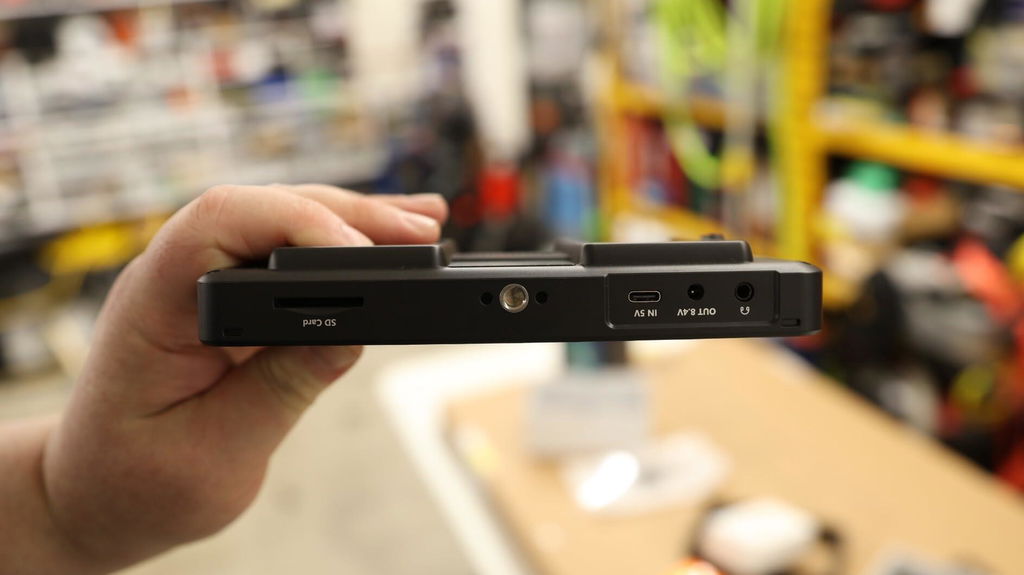

- Power Input/Output:
5.5mm DC Input Interface: DC- 12-26V (cannot be used as a dummy battery when in low voltage output)
2.5mm DC Output Interface: DC 8.4V (can connect a dummy battery power cord to the camera via the DC power output interface, significantly extending the camera's battery life)
- HDMI Input Format Support:
480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98),
1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF)
3840x2160 (30/25/24Hz), 4096x2160 (25/24Hz) - Output: HDMI, 3.5mm headphone jack
- Type C Input Interface: Supports 5V/3A and higher fast chargers or portable chargers (3A output)
- Total Power Consumption: ≤22W (without DC 8.4V output)
- Operating Temperature: -20°C-55°C
- Storage Temperature: -30°C-65°C
- Dimensions: 6.9"x4.2"x1"/175x107x25mm
- Weight: 15.7oz/445g (without batteries) ; 23.1oz/654g (with 1 battery) ; 30.2oz/857g (with 2 batteries)
Package Contents
F700
- 1 x Monitor
- 1 x Monitor Mount
- 1 x USB to Type C Charging Cable

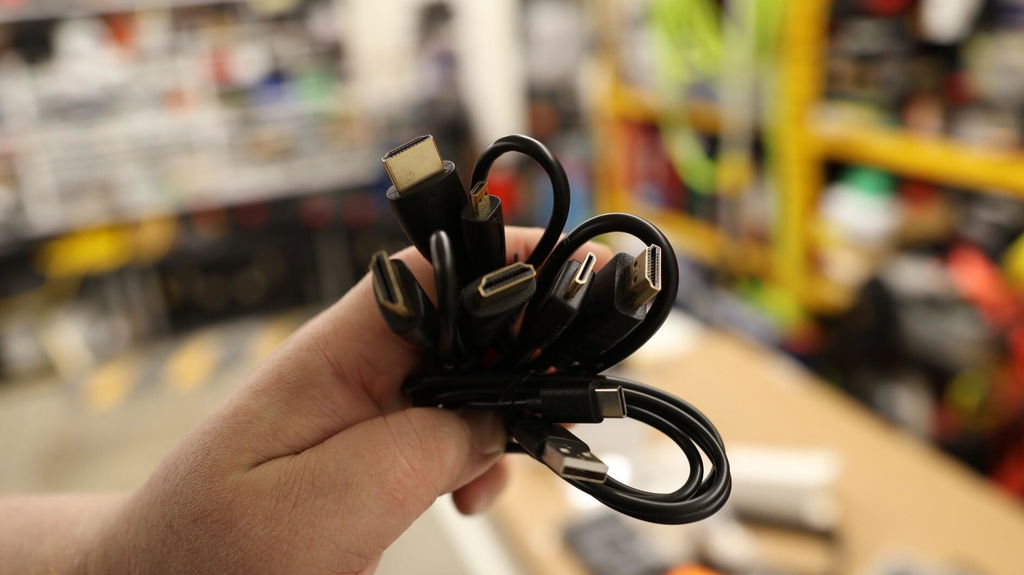

- 1 x HDMI to HDMI Cable
- 1 x HDMI to Micro HDMI Cable
- 1 x HDMI to Mini HDMI Cable
F700+1*NP-F750 Battery
- 1 x Monitor
- 1 x Monitor Mount
- 1 x 5200mAh NP-F750 Battery
- 1 x USB to Type C Charging Cable
- 1 x HDMI to HDMI Cable
- 1 x HDMI to Micro HDMI Cable
- 1 x HDMI to Mini HDMI Cable
F700+ 2*NP-F750 Battery
- 1 x Monitor
- 1 x Monitor Mount
- 2 x 4400mAh NP-F750 Battery
- 2 x USB to Type C Charging Cable
- 1 x HDMI to HDMI Cable
- 1 x HDMI to Micro-HDMI Cable
- 1 x HDMI to Mini-HDMI Cable

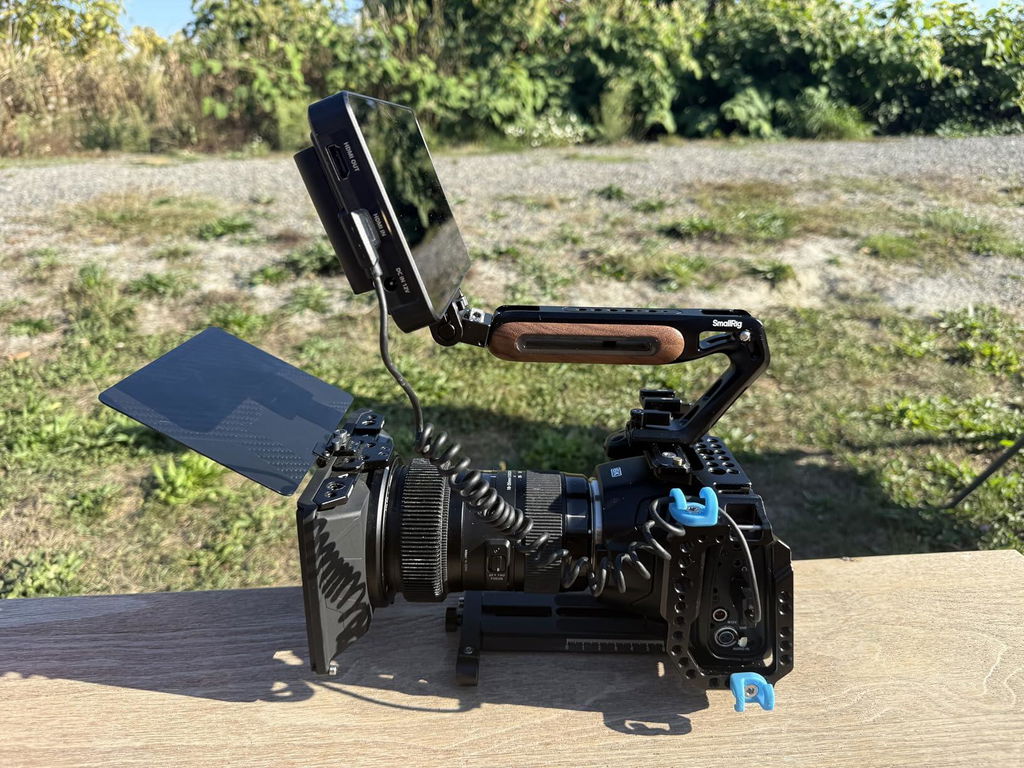

Looked like trash until I turned down the Sharpness setting, highly recommend turning this down (it was especially bad at 23.98 for some reason).Also had to turn up saturation a bit for it to match my camera screen more closely, just fyi.Monitor is lightweight, super bright, fairly good on battery. I just like it. The cold shoe mount it came with works pretty well too! And 7 inches seems to be all the monitor I will ever need lol.Using on a BMPCC6k.
I recently purchased this monitor and it has worked very well so far! I tested it at a local concert and everything was smooth. I even used it to take photos of the band! The photos came out really and it was very easy to use with my camera! I just need to dive into the features more because it is a very new purchase
This is a great monitor. Super easy to use. Bright and clear. High quality. Great value for money.
Absolutely excellent monitor with touch screen. Brilliance and colour outdoor are great without a hood or shade. I debated buying the cheaper or smaller screen versions due to cost, but Amazon Prime Day made it a no-brain decision to go for the best! Fantastic aid to macro work
I used it with a 99wh v-mount battery, and in 1 hour it went from 66% to 48%. At that rate, I could use it for around 5 hours on a full charge. Considering the size and capability, I'd call that pretty good.It has a very nice looking image, and it's easy to see even in very bright ambient light. It's so much nicer than the built in monitor, and having the detailed waveform on the monitor while still being able to see what I'm shooting makes a huge difference. I feel like the ui on this monitor has a better layout than the one on the camera.It came with a monitor mount, but I used a mini ball head so I can swivel it left and right.Overall a very nice monitor.Highly recommended.
Very happy with my monitor it works well with my Nikon P1100.
Glad I finally jumped on getting a field monitor. I'm a photographer turned videographer by necessity and it's been a steep learning curve but having the ability to really see what's in frame is a huge game changer. Haven't had too many opportunities to use this monitor yet but looking forward to learn its full potential and hopefully up my game a bit!
works great. a bit heavy with supplied batteries, switched to battery pack and usb-c cord. much lighter then.
I love this monitor! Truly incredible and so worth the price
Really impressed with the NEEWER F700 7" Camera Field Touch Screen Monitor! The large, crisp display makes framing and focusing so much easier, and the touch controls are quick and intuitive. Perfect for both studio and on-location shoots, it’s lightweight, easy to mount, and delivers excellent image clarity. A solid piece of gear that’s quickly become an essential part of my kit.
A really excellent piece of kit at a staggeringly good price that performs well above its many competitors.
This monitor is mind blowing for the price. Far exceeded my expectations. Plus the price with 2 batteries can¡¯t be beat.
Only used it a couple of time so far, and so far really impressed. It certainly is bright which is what I wanted, and has addressed the challenges I wanted to fix with using just my camera's own screen.
Definitely a big unit, but I never pack light anyway - if my gimble isn't like carrying a bag of bricks, I clearly haven't got enough!
great little screen, even better with the discount buting direct
Another exceptional product from Neewer. I have been using this field monitor for a few months while traveling. First off, enjoying the brightness. Makes a huge difference. I like the touch screen as well. Menu is easy to navigate. This field monitor has come handy when reviewing photos while traveling. Gives me a much big picture over the small display monitor built in from the camera. Does not come with a power supply cord, but it does come with two batteries which you are able to recharge with a USB C cable. Monitor has a built in cooling fan which you can't heard at all. Overall this monitor is great.
Love the efx I can do with it no matter selfie, or filming.
